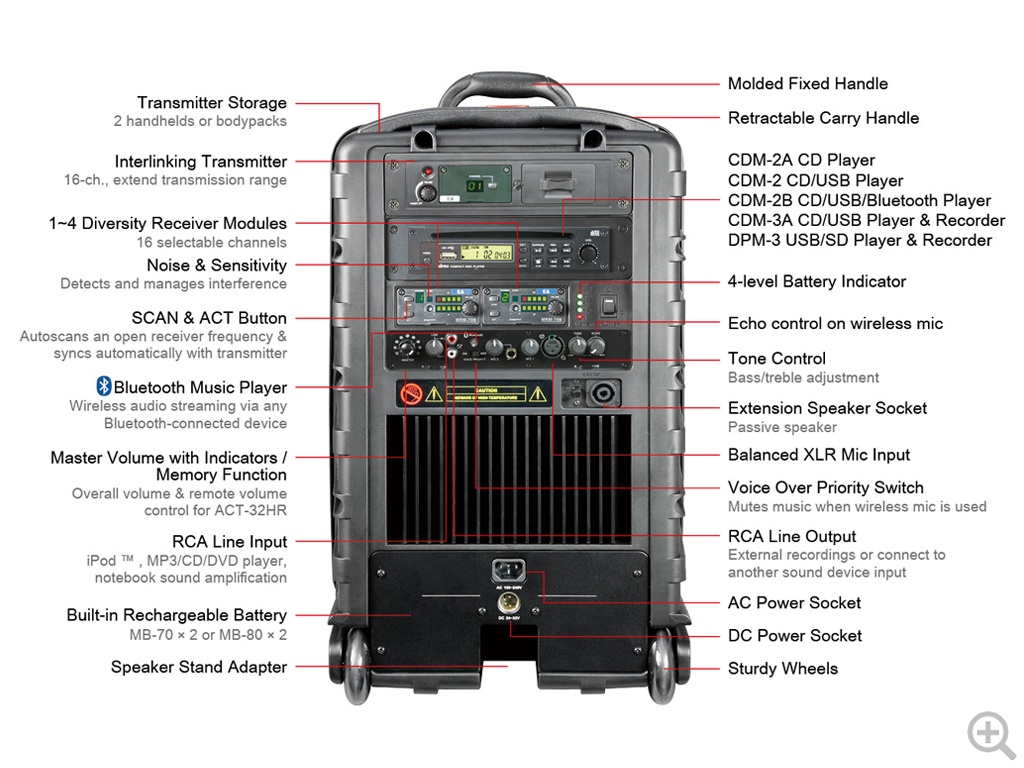

Features:

  • Lightweight Class D amplifier produces 267-watt audio output.
  • 1.5” titanium compression driver & 10” woofer
  • 3 power modes: AC, rechargeable battery & DC jack.
  • Up to 6 hours of operating time per charge
  • For crowds up to 2,000.
  • Retractable handle and sturdy wheels for easy transport.
  • Built-in storage compartment for 2 transmitters.
  • Lightweight contoured design – just 20kg/45lbs (loaded)
  • Optional CD/USB player module (including remote control)
  • Up to 4 optional high performance diversity receiver modules with 16 auto-scanable frequencies.
  • One-touch Autoscan for a clear, interference-free frequency
  • One-touch ACT™ syncs the transmitter and receiver frequency automatically.
  • Interference warning indicator and control management
  • 100m(300 ft) operating range.
  • MTM-92 transmitter option for wireless interlinking of multiple MIPRO MA-808 portables to extend transmission range and expand coverage.
  • A voice priority feature that mutes the music when mic is used.
  • Echo effect control.
  • Line-output for external audio recordings.
  • 4-segment battery meter for accurate battery reading and charging status.Rechargeable batteries included
  • Speakon extension speaker output
  • Integrated speaker stand mount
  • Suitable for tripod, floor or desk mount.
  • 100% made in Taiwan.

Specifications:

Power Output267-watt
T.H.D.<0.1%
Frequency Response50Hz~18KHz
Treble Speaker1.5-inch, Titanium Compression Driver
Bass Speaker10-inch, Neodymium Woofer
Active Crossover Filter2.5kHz / -12dB oct
Operating ModeDirect operation on speaker unit
CD PlayerCDM-2
Wireless ReceiverOptional MRM-70 and/or MRM-72. UHF 16 switchable channels. AutoScan and ACT technology.
Audio InputsBalanced, Unbalanced Mic & Line-in
Power SupplyBuilt-in two pieces of 12V/4.5AH rechargeable battery with charger & 100~240V AC switching power supply.
Charging & Operating Time6~8 hours charge for 5~6 hours use. (automatic charging management)
Dimensions360(W)×560(H)×350(D)mm / 14.2(W)x22.0(H)x13.8(D)
Weight20.5kg / 45.2lbs
RechargeableBuilt-in MB-70 battery x 2
Exterior ColorBlack
Matching TransmittersACT 32H,  ACT 32T
Matching cabled microphoneOptional MM-107
NoteVaried specifications on carrier frequency range, maximum deviation, RF output power and spurious emission to comply regulation of different countries.
