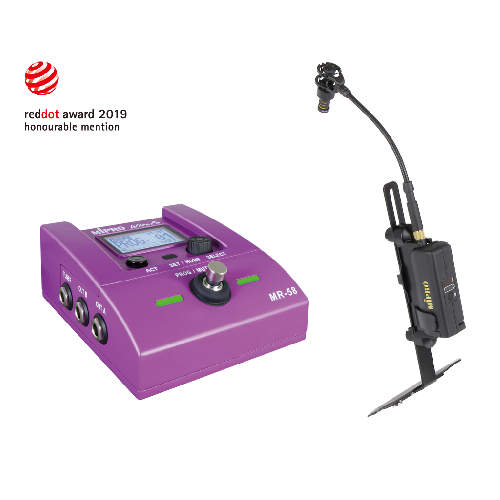

MR-58DC Cajon Set
1. Innovative Design
- The MR-58 ISM band wireless pedal receivers are designed for musical instruments. The panel is equipped with a graphic LCD screen displaying various parameters. Paired with MIPRO’s ISM band transmitters, it receives the audio signal picked up from the instrument microphones on any acoustic or electric instrument or directly from an instrument’s pickup which is transmitted through the transmitter, and modifies the tone effects with various preset functions to satisfy the players’ preference. By stepping on the footswitch, the signal can be transmitted to one or more amplifiers.
- The MR-58 receiver integrates digital wireless transmission technology with the musicians’ requirements. With its rugged metal case, built-in antenna and ergonomic footswitch for easy and quick set-up by the musicians, it’s ideal for personal studio and live stage applications.
- The MR-58 receiver has 32 user-programmable parameters for setting up Channel and ID, Cable Tone, Acoustic Response, Anti-Feedback, Gain, Output, Phase and Color. Each setting can be switched by stepping on the footswitch.
- The MR-58 has dynamic range > 120 dB, T.H.D. < 0.1%, wide frequency response 18 Hz ~ 23 kHz and ultra-low noise floor. It applies advanced DSP and an exclusive algorithm for digital processing for natural sound reproduction.
- Two Ø 6.3 mm Phone Jacks and one output XLR connector can be connected to multiple effects. Each output can be switched to muting or output. One Tuner-Out can be connected to the tuner for pitch adjustment.
2. Most Advanced Built-in Digital Control Interface
User-friendly Digital Control Interface
- 32 user programs: (1) Anti-Feedback (2) Acoustic Response (3) Cable Tone (4) Gain (5) Phase (6) Channel and ID (7) Output (8) Color (9) Rename
- One switch conversion between electric and traditional instrument.
- Two unbalanced Ø 6.3 mm outputs, one balanced XLR output and one Tuner output.
- Programmable presets ensure easy and quick selection among multi-effects and different amplifiers.
- MR-58 operates in ISM 5 GHz frequency band and thus avoids the interference from Bluetooth, smartphones, Wi-Fi and 2.4 GHz communication products.
Electric Instrument Digital Control Interface
- 0 ~ 30 meters Cable Tone adjustment ensures superior tonal quality.
- 18 Hz ~ 23 kHz wide frequency response. Eliminates the defects of analog system or cable.
- Programmable gain setting ensures the same volume output between multiple electric instruments.
Acoustic Instrument Digital Control Interface
- Proprietary Anti-Feedback and Acoustic Response characteristics modify the signal to ensure a premium sound.
- Anti-Feedback and Acoustic Response presets allow easy selection of multiple instruments.
- Programmable presets solve the complex operations caused by different resonance, loops and volume conditions.
- Compatible with MIPRO’s guitar, saxophone, wind instruments, violin, viola and cello microphones for quick and easy change of multiple instruments when playing on stage.
Features:
- The MR-58 pedal receiver has consistent housing and control panel as the MR-24 and has its own color. It is equipped with 5 GHz receiving circuitry to be the most advanced model in the ISM band nowadays. Other than superior anti-interference characteristics and more compatible channels, it has even perfect and quality sound.
- Worldwide operation in license-free 5 GHz ISM band avoids the interference and telecom regulations in the 2.4 GHz and UHF band. Features wide operation range, reliable performance, more compatible channels and natural sound reproduction.
- Sturdy metal construction with unique color, large graphic LCD screen and easy to use footswitch.
- High-sensitivity built-in antenna with specific structure designed to prevent accidental breakage.
- Uses 9~12V DC power supply with input auto tip + or -, convenient to string with other effects.
- Balanced output jack with ground lift switch for PA system connection eliminates electrical noise.
- Micro SD Card Slot for user programming and firmware updates.
- The circuit design and features are compatible with the MIPRO ACT-5800 Series.
Specifications:
| Receiver | |||
| Frequency Range | 5 GHz – ISM band (5,725~5,850 MHz) | ||
| Channel Set-up | ACT sync | ||
| Audio Sampling | 24-bit / 48 kHz Rate | ||
| Frequency Response | 18 Hz~23 kHz | ||
| Latency | < 1.7 ms | ||
| S/N Ratio | > 120dB (A) | ||
| T.H.D | 0.04 % @ 1 kHz | ||
| Sensitivity | -95 dBm | ||
| Receiving Mode | True Diversity Receiving | ||
| Display | 32 × 55 mm (VA) Graphic LCD, Color LED Lamp × 2 | ||
| Audio Outputs | Ø 6.3 mm Phone Jack × 3, XLR × 1 | ||
| Switches | Footswitch × 1, Ground Lift Switch × 1 Edit/Home Switch × 1, ACT Sync Switch × 1 Rotate Switch × 1, Power Switch × 1 |
||
| Interface | Micro SD Card Slot × 1 | ||
| Power Supply | DC 9 ~ 12V / 0.3A | ||
| Dimensions (W×H×D) | 130 × 50 × 110 mm / 5.1 × 2.0 × 4.3 “ | ||
| Net Weight | Approx. 850 g / 30 oz | ||
| Environmental Temperature | -10~ +60 ℃ | ||
| Transmitter | |||
| RF Output Power | 2 mW / 10 mW switchable (country dependent) | ||
| Max. Audio Input | 6.5 dBV | ||
| Battery Meter | 4-level green/red LED display | ||
| Impedance | Approx. 1.0 M Ω | ||
| Dimensions (W×H×D) | 84 × 35 × 29 mm / 3.3 × 1.4 × 1.1 “ | ||
| Net Weight | Approx. 61 g / 2.2 oz | ||
| Battery | ICR 18500 lithium battery | ||
| Note | Refer to actual product in the event of product discrepancy. | ||
Click here to download MiproMR 58GE guitar ukulele saxophone & cajon set user manual
