MA 909 Audio Mixer

Overview:

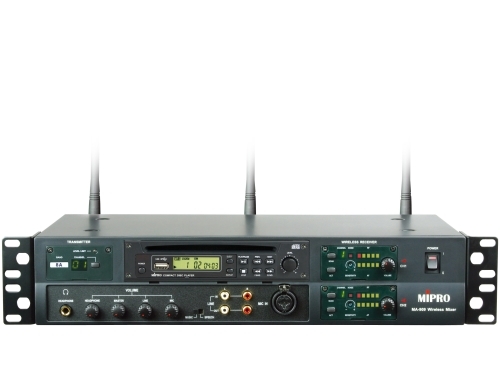

EIA Standard 2U metal case equipped with built-in 2-channel wireless microphone system, CD player, wired microphone socket, LINE-IN socket of other audio sources and LINE-IN/OUT sockets of recorder.
A wired microphone, two wireless microphones, CD & cassette player, and other audio sources can be mixed simultaneously to the input.

Separates the control mixer unit from the active speaker system allowing users to control wireless mixer nearby to achieve the best performance results of active speaker systems in the far distance. Preset 16 transmission frequencies allow selection of non-interference frequency conveniently.
Modular design for interlinking wireless receiver allows being built-in or mounted on specified brand of active speaker systems.

The active speaker systems with an interlinking receiver module installed allow unlimited expansion or change of setup position within transmitting range.

Matching Handheld Transmitters ： MH801

Matching Bodypack Transmitters： MT801

Specifications:

Receiver Module

Built-in 2 V/U detachable receiver modules

Matching Transmitters

Handheld : ACT707HE, Bodypack Transmitter : ACT707TE

Antennas

Located on rear panel

CD Player

Built-in, anti-shock mechanism

Audio Input Sockets

Balance, Unbalance MIC & LINE-IN/LINE-OUT

T.H.D.

< 0.5%

Frequency Response

50Hz~15KHz – 3dB

Wireless Transmitter

Frequency band : UHF 800MHz. Preset 16 frequencies

Power Supply

Built-in 90~264 V AC switching power supply

Dimensions (m/m)

420(L) x 44(H) x 200(D)

Weight (kg)

5.2

Exterior Color

Black

Note

Varied specifications on carrier frequency range, maximum deviation, RF output
power and spurious emission to comply regulation of different countries
