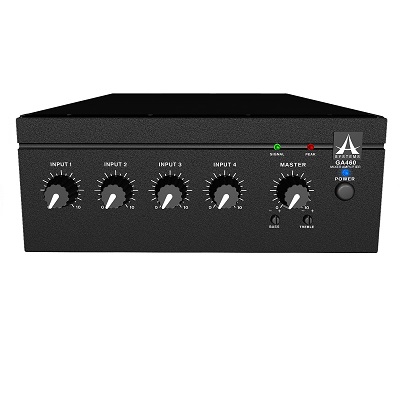

GA460      4-Channel Commercial 60 Watt Mixer/Amplifier

PHENOMENAL POWER IN A HALF-RACK CONSTRUCT

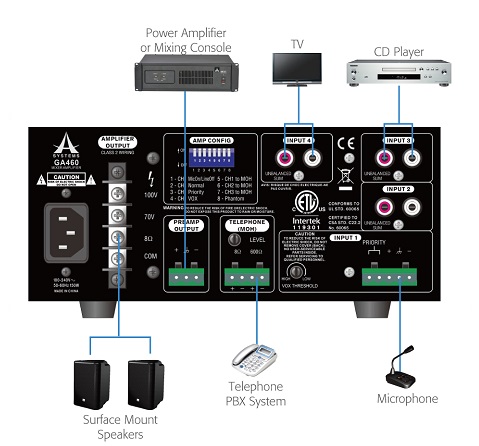

For commercial installations and set ups, the Asystems GA series of mixer/amplifiers provide the power and precision necessary for a flawless system. The GA460 provides a total of 4 inputs with a 60W amplifier output. Each GA mixer/amplifier also features an individual level control on each input, voice activated muting, music on hold output and bass and treble controls. Offering a myriad of professional inputs possibilities and flexible output modes including 70V and 100V, the GA series of mixer/amplifiers is perfect for background music, broadcast paging, as well as on-hold music for offices, restaurants, factories and churches.

Features

  • 4 input channels, each with volume control
  • 60 Watt amplifier output channel
  • Bass and treble controls on master output

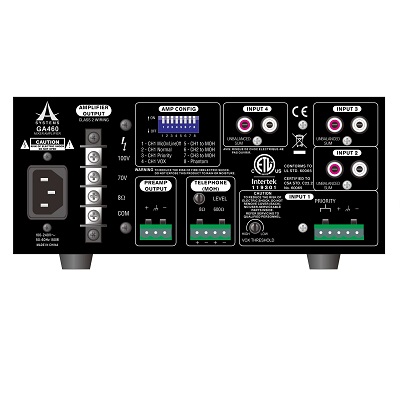

  • Balanced Euroblock mic/line inputs
  • 3-pin preamplifier output connection
  • Telephone output for ‘music on hold’ application
  • Two dual-mono RCA input connectors
  • Screw-terminal speaker outputs
  • Priority muting by VOX or external switch

Specifications

GA460
Power Output (Peak)60W
Input Section
RCA Inputs3
Frequency Response70Hz to 18kHz ±2dB
Euroblock Input1
Output Section
Balanced Screw Terminal OutputYes
Balanced Euroblock OutputYes
Zone 2 (Telephone Use)Yes
70V OutputYes
100V OutputYes
S/N RatioAll>60dB
Input Signal LEDYes
Master Out Clip LEDYes
Treble & Bass (Output)Yes
VOX ThresholdYes
Number of Input Channels4
Input Volume Controls4
Master Out Level Control1
THD@ 1kHz (10% Rated Output)< 0.5%
Phantom Power14~15V
Dimensions (WxHxD)241 x 105 x 352 mm (9.49″ x 4.13″ x 13.86″)

Click here to download Asystems GA335 GA460 brochure

Click here to download Aystems GA335_GA460 user manual
