DM 481 8-Channel Rack Mountable Mixer

DM 481

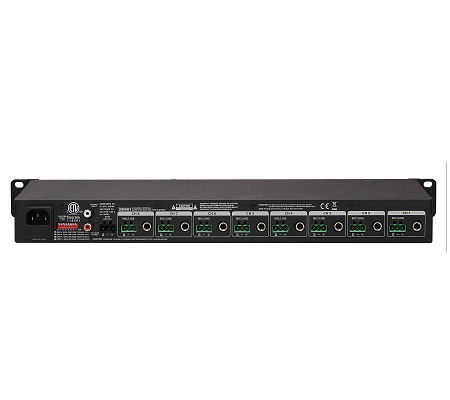

DM 481 sideDM 481 backDM 481 app

DM 481    8 Channel Rack Mountable Mixer

DISCRETE 8-CHANNEL RACK-MOUNTABLE MIXER

Overview:

Where space is tight, this easily manageable rack-mountable 8-channel mixer with ultra low-noise mic preamp gives you flexible mixing and high/low audio control. Phantom power is available on each and every microphone input adjustable through simple DIP switches. Also included on each input channel: A variable tone control allowing accurate adjustment of high and low frequency audio, a peak indicator to help monitor incoming signal levels to avoid distorted audio, and a mute switch for immediate muting and unmuting of incoming signals. Output is sent either through a 3-pin phoenix connector or pre-fader RCA output. An additional auxiliary input via RCA jack is also available to further expand the DM481’s operation.

Features:

  • 8 mic/line inputs through 3-pin euroblock and 1/4” phone jack connectors
  • Ultra low-noise preamp circuitry offering up to 62 dB gain (Mic In)
  • Mute control, clip indicator and tone control on each channel
  • Pre-fader out and aux in for connecting additional units to maximize flexibility
  • Individual +48V phantom power on every channel
  • Unbalanced 3-pin euroblock master output connector
  • Built-in power supply (no bulky power adapter)
  • Incredible 1-unit space-saving design

Specifications:

Inputs
Total Channels 8
Mic Input / Line Input 8 x 3-pin Euroblock & 8 x 1/4” TS
Aux Bus In RCA
Outputs
Main Out 3-pin Euroblock (unbalanced)
Pre-Fader RCA
THD+N
THD (Any output, 1kHz @ + 14 dBu, 20Hz to 20 KHz) 0.01%
Metering
Channel Clip Indicator +6dBu
Phantom Power Supply +48V DC
Phantom Switches DIP
Frequency Response (Mic input to any output)
20Hz to 20KHz +0/ -1 dB
20Hz to 60KHz +0/ -3 dB
S/N ratio, ref to +4 106 dB
Microphone Preamp E.I.N (150 ohm terminated, max gain) <-129.5 dB
CMRR (1 KHz @ -60 dBu, Gain at maximum) 80 dB
Maximum Level
Mic Preamp Input +10 dBu
All Other Input +22 dBu
Main Output +28 dBu
Impedance
Mic Preamp Input 1.4 K ohms
Unbalanced Line in 12 K ohms
Aux Bus In 10 K ohms
Main Output 100 ohms
Pre-Fader Out 100 ohms
Power Requirement (depends on region) 100-120VAC, 220-240VAC 50/60Hz
Dimensions (WxHxD) 483 x 44 x 165 mm (19″ x 1.73″ x 6.49″)
Net Weight 3.2kg (7.1 lbs)



Click here to download Asystems DM481 brochure

Click here to download Asystems DM481 user manual
