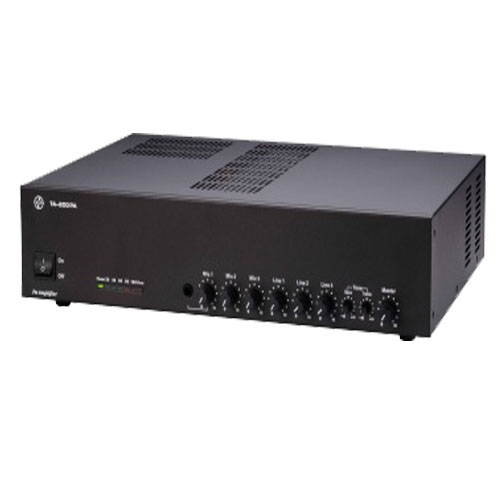

TA-80PA / TA-120PA / TA-200PA Powered Mixer
Features:
- this system has high-quality sound output as good as that of Hi-Fi stereo systems
- the emergency alarm priority function
Physical Specifications
| Power output | 80W RMS / 120W RMS / 200W RMS |
| Power Supply | AC 230V 60Hz，DC 24V |
| Loaded impedance | 100V.70V.0V，16Ω.8Ω.4Ω.0Ω. |
| Input | InputMIC × 3，LINE × 3 (LINE1 and LINE2 can be switched to MIC) |
| Frequency response | 20Hz ~ 15KHz ± 3dB |
| Distortion rate | 0.1% ±5 (1KHz Output) |
| Tone control | Bass ± 10dB , Treble ± 10dB |
| REC OUT | 1KΩ 0dB |
| Dimension | 420mm(W) × 102mm(H) × 335mm(D) |
| Weight | 9.7kg / 10.90kg |
Click here to download TACH TA-80PA TA-120PA TA-200PA PDF
