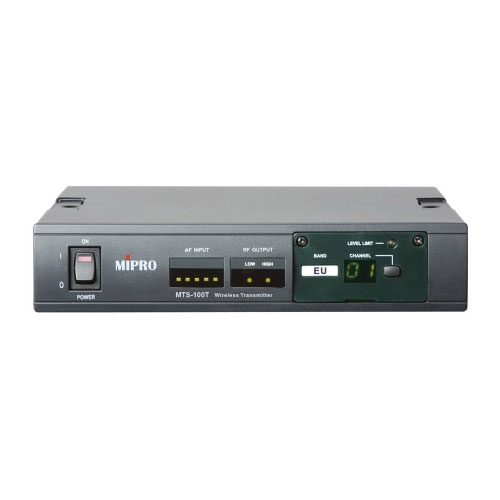

MTS-100T Tour Guide/Interpretation System Rack-mountable Transmitter

mts-100t
20130109164531I5R9

Features:

  • Modular design for easy set-up, operation and maintenance.
  • Preset with 16 selectable channels.
  • Bright LED channel display.
  • Direct output for low level or switch to wideband amplifier for high level output.
  • Selectable input audio signal level for optimal modulation index.
  • Audio input and RF output LED indicators.
  • 48 V phantom power for condenser microphones.

Click here to download MIPRO MTS-100T brochure



Frequency Range CEPT/EU: 863 – 865 MHz | USA: 926 – 928 MHz
Oscillation Mode PLL Synthesized
Preset Channels 16
Switching Bandwidth 2 MHz
Preset Frequencies 16
Modulation 2 FSK
Stability ±0.005%, 0℃– +60℃
Channel Grid 125 kHz
RF Output Power <10 mW (Low) |
Antenna TNC, 50Ω
Spurious <250 nW @>1 GHz
Transmission Range > 100 meters (High setting)
Frequency Response 50 Hz – 10 kHz
Max AF Input Level
Microphone Input XLR & 6.3 mm (Combo)
Input Level Switch Mic or Line-Level
Phantom Power Switch ON / OFF
Panel Display Audio Meter, Audio Limiter, RF Hi/Low Power indicator. LED channels
Power Supply 12 – 15 V DC
Dimensions (W × H × D) 210 × 44 × 206 mm / 8.3 × 1.7 × 8.1 “
Weight Approx. 1.1 kg / 2.4 lbs
