MJ-53 enables a condenser microphone with mini XLR plug to connect directly to the XLR jack input of a mixer which provides 12–48V DC phantom power. The high output impedance of a condenser microphone will be transformed to low output impedance at about 200 Ohms.

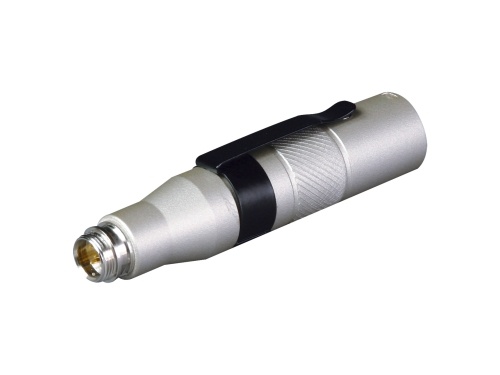

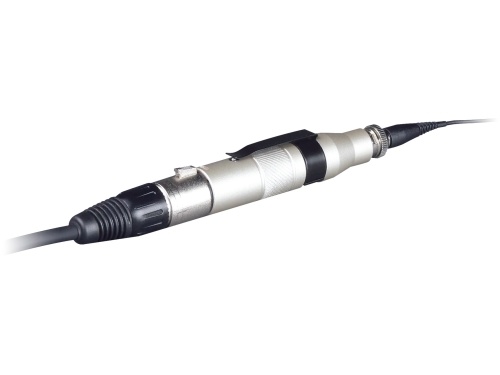

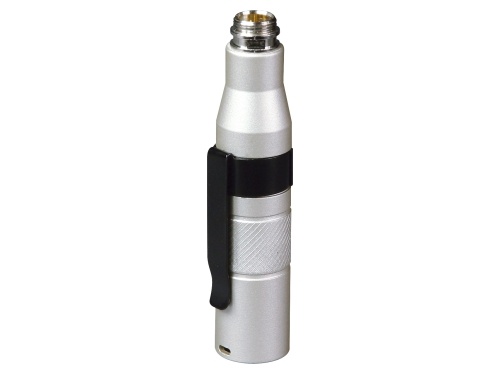

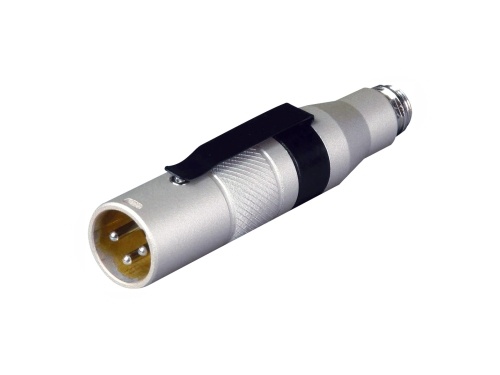

MJ 53–Condenser Microphone Adaptor
Features:
- Balanced output for wide frequency response.
- Suitable for any mixer input due to constant output impedance.
- High S/N ratio prevents noise interference in long distance transmission
- High dynamic range ensures accurate output level.
- No overload distortion under high SPL input.
- Mini XLR connector for input and XLR connector for output.
- Belt clip for easy wearing.
- Rugged metal housing ensures a long operating life.
Specifications:
| Frequency Response | 80 Hz (-3 dB) – 20 kHz (0 dB) @ 94 dB SPL |
| Output Impedance (Balanced) | 200 Ω @ 1V / 1 kHz |
| Max. Output Voltage | 2.52 V @ 1% T.H.D. 1 kHz |
| Dynamic Range | 120 dB (A-weighting) |
| Power Supply | External Phantom Power: 12–48V DC |
| Current Consumption | 2.0 mA |
| Dimensions (Ø × L) | 19 × 92 mm / 0.7 × 3.6″ |
| Weight | Approx. 72 g / 2.5 oz |
