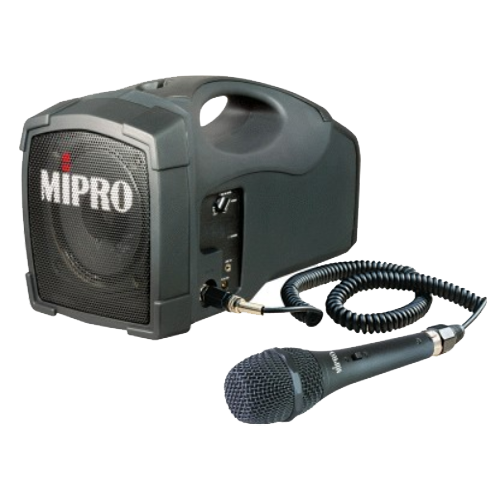

MA101C/MM107 Portable PA with Wired Microphone
Main Features :
Patented streamline appearance.
Works with MIPRO MM-107 or other dynamic microphone. Ideal for use in any gathering PA applications with mobility.
With compact size and lightweight, it can be conveniently carried by hand, over the shoulder, on the desktop or mounted on a microphone stand.
8 hours of continuous operation per 4 hours charge from its built-in rechargeable battery to save the cost.
CD/Cassette, DVD player or other audio sources can be connected to the Line-in jack and mixed with microphone signal simultaneously.
Clear and nature sound from the high fidelity and high-efficiency amplifier circuit design.
Allow for versatile mobility applications.
Main Specifications:
| Weight (kg) | 2.7 | |
| Matching cabled microphone | MM-107 dynamic microphone | |
| Specifications of Microphone | According to specification sheets of microphone | |
| AF Power Output | 30W(rms)/4 ohm load | |
| T.H.D. | < 0.1% | |
| Frequency Response | 60Hz~15KHz /- 3dB | |
| Speaker | 5 inch, full range | |
| Audio Inputs | Mic-in & Line-in jacks | |
| Operation Mode | Direct operation on speaker unit | |
| Power Supply | A built-in 12V/2.7AH rechargeable battery, charger & 90~264 V AC switching power supply | |
| Charging Time & Operating Time | 8 hours continuous use per 4 hours charge (automatic charging management) | |
| Dimensions (mm) | 285(D) x 160 (W) x 178 (H) | |
| Exterior Color | Black | |
| Approvals & Patent | New style patents; Telecom and safety regulations approved | |
| Note | Varied specifications on carrier frequency range, maximum deviation and RF output power to comply regulation of different countries | |
