MA100DB Personal Wireless Portable PA with Bluetooth & USB - Meditec

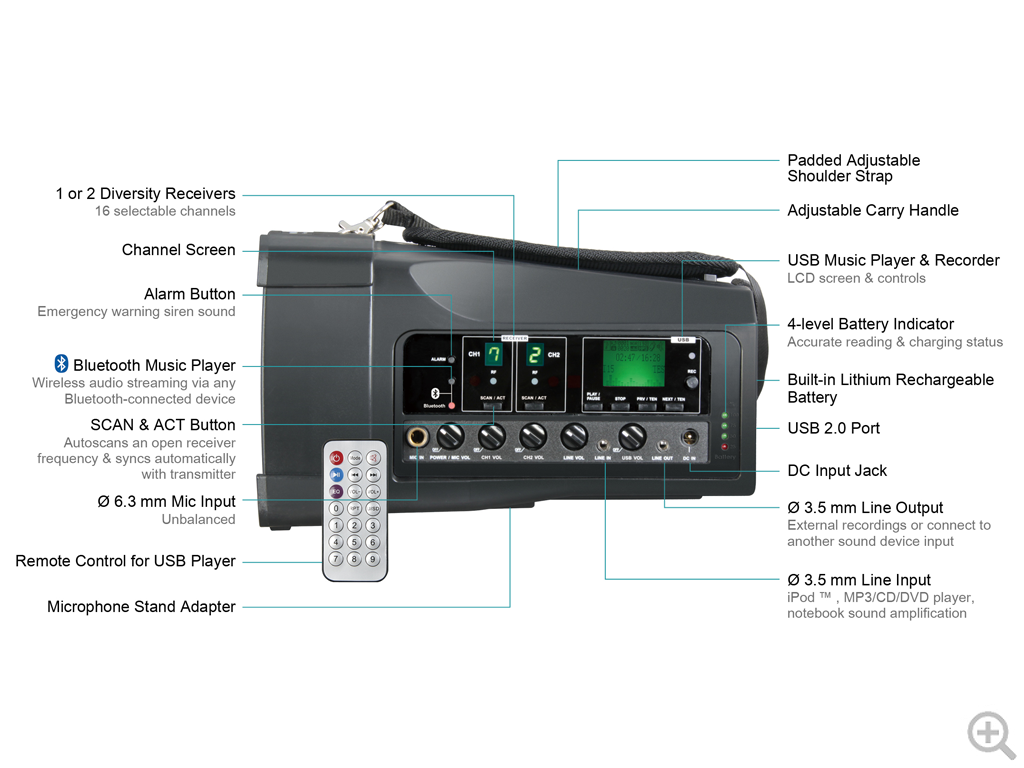

MA 100DB functions

MA 100DB picture

Product Features:

Rugged yet lightweight one-piece molded cabinet.
Built-in 2 wireless diversity receivers with 16 auto-scannable frequencies.
One-touch Scan & Sync (ACT) button for fast and easy channel set-up.
Built-in Bluetooth receiver for wireless audio streaming.
Built-in USB music player & recorder with LCD screen.
Built-in one-button alarm/siren for warning of threats.
User-friendly control panel provides intuitive easy operation.
50 W class-D amplifier to power a 5″ full range driver.
AC and lithium rechargeable battery operation.
Up to 12 hours of stand-by time per 4-hour full charge.
Weighs only 1.8 kgs │3.9 pounds.

Specifications:

Power Output	50W (Max)
Amplifier	Class D
T.H.D.	<1%
Frequency Response	50Hz~18KHz
Loudspeaker	5-inch full-range high efficiency
Audio Inputs	Wired: 6.3mm (1/4″) optional MM-107 microphone Line-Input: 3.5mm (1/8″)
Audio Output	3.5mm (1/8″)
Installation	Microphone stand, table mounted, shoulder belt.
Power Supply	AC: External 100-240V AC switching power supply DC & Battery: 14.8V/2.6AH rechargeable lithium battery (MB-10)
Charge Time	Up to 4 hours (automatic charging management)
Stand-by Time	Up to 10 hours
Charge Indicator	4-level Battery Meter
Color	Black
Dimensions	135(W)×140(H)×240(D)mm / 5.3(W)x5.5(H)x9.4(D)”
Weight (battery included)	Approx. 1.9kg / 4.1lbs

Wireless System

Frequency Range	UHF 480~934 MHz
Frequency Band	24 MHz
Preset Channel	16
Channel Set-up	Scan & ACT sync
Transmitter	ACT -32H (2 AA), ACT -32T (2 AA)
Antenna	Built-in

Audio Player

Built-in 2.0 USB Port	Yes
Play & Record	Yes LCD displays track name, number, time, recording status. Remote included.
Patents & Certifications	Patented. Telecommunication and safety regulations.
Notes	Refer to actual product in the event of product discrepancy. Frequency range, max. deviation, RF output power and spurious emission to comply regulations of different countries.

Click here to download Mipro MA100SB & MA100DB Brochure

Click here to download Mipro MA 100SB MA 100DB Specifications
