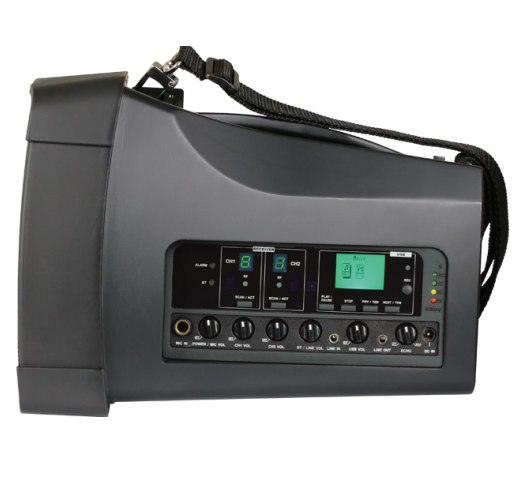

MA 200D side view



Features:

  • MA-200 incorporates the design essence of MA-202 and MA-100.
  • The two-way, high-efficiency speaker system delivers a clear and powerful sound in full range.
  • Easy hand-carrying or stand-mounting makes MA-200 the most ideal megaphone for various applications.
  • One UHF or ISM 5.8 GHz band receiver module for long-distance and reliable reception performance.
  • Plug-in Bluetooth module, USB player/recorder, built-in echo function, and alarm siren which has a fade-in effect.
  • Equipped with audio input mixer. Each audio source has individual volume control.
  • Removable lithium battery holder for fast insertion and replacement.
  • Bluetooth with TWS technology can combine two megaphones for stereo sound.

Specifications:

ModelMA-200D
NameDual-channel Personal Wireless Megaphone
Maximum SPL103 dB
Loudspeakers1″ Treble & 5″ Woofer
Frequency Range80 Hz – 18 kHz
Audio InputsMIC IN: 1 × 1/4″ (6.3 mm)
LINE IN: 1 × 1/8″ (3.5 mm)
Audio OutputLINE OUT: 1 × 1/8″ (3.5 mm)
AmplifierClass D
Output Power60W RMS, 102W peak
Receiver2 × UHF or ISM 5.8 GHz module
Audio PlayersPlug-in Bluetooth module & USB Recorder/Player
Other FunctionEcho on mics & siren sound effect
Power SupplyDC socket for external AC power supply
Battery TypeLi-ion battery set (ICR 18650 × 4)
Battery Indicator4-segment indicator (25/50/75/100%)
Standby TimeUp to 10 hours
Dimensions163 × 204 × 276 mm / 6.4″ × 8″ × 10.9″ (W×H×D)
WeightApprox. 2.4 kg / 5.3 lb. (batteries included)
Optional AccessoriesSC-200 carry bag, MS-30 tripod stand, MM Series microphones
PatentsPatented. Telecom and safety regulations approved.
NoteRefer to the actual product in the event of product description discrepancy.



Click here to download Mipro MA-200D specification sheet

Click here to download MA-100_200_300 user guide
