Impulse® 100
Overview

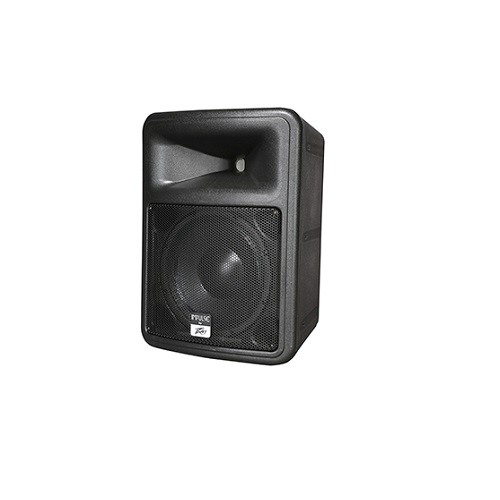

Ultra-high performance from a portable, two-way, full-range speaker system in a compact package. This cosmetically elegant and durable trapezoidal enclosure is made of high-impact polypropylene with a metal grille. The system is comprised of a 10 inch long-throw, heavy-duty woofer with a special suspension to provide excellent excursion capability. A 14XT™ compression driver with a 1.4 inch titanium diaphragm is coupled to an extremely smooth constant directivity horn with Sound Guard™ II high frequency driver protection. Input connections are made via two 1/4 inch phone jacks connected in parallel for daisy-chaining. The Impulse® 100 provides extremely smooth frequency response and clarity in the midrange that is superlative. The cabinet features a handle, molded-in speaker stand adapter in addition to top and bottom mounting points for flying.
Key Features:
| Two-way weather resistant molded speaker system |
| High-frequency driver coupled with a molded-in horn and a specially-designed, long-throw, heavy duty woofer |
| On-board Sound Guard™ II high-frequency driver protection circuit |
| Molded-in stand adapter and flying points on the top and bottom |
| Molded-in handle |
| Power Handling: Full Range (8ohm) – recommended amp 350W |
| Max. Sound Pressure Level (1 meter): Full Range : 118dB SPL continuous / 125dB SPL peak |
| Frequency Response: 74 Hz to 18 kHz (±3dB) |
| Weight Unpacked: 27.34 lb(12.4 kg) |
| Weight Packed: 31.99 lb(14.51 kg) |
| Width Packed: 17″(43.18 cm) |
| Height Packed: 20.75″(52.705 cm) |
| Depth Packed: 15.5″(39.37 cm) |
