DMA 8413 Digital Matrix Amplifier

DMA 8413

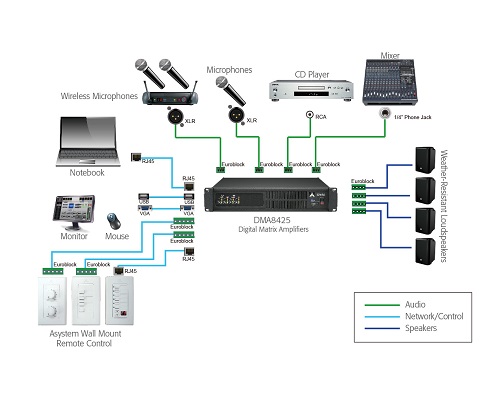

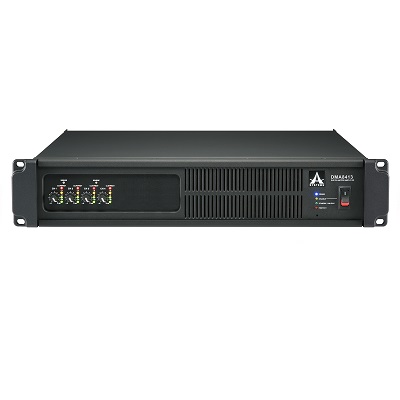

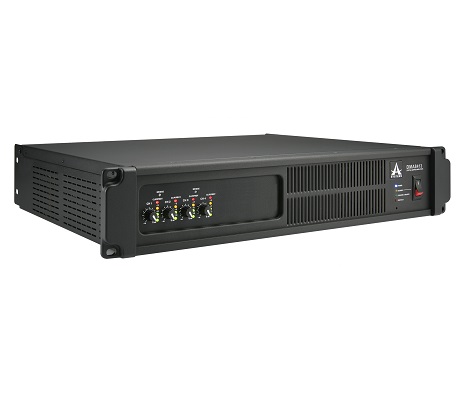

DMA 8413 backDMA 8413 sideDMA 8413 APP

DMA 8413    520 Watt 4 Channel Digital Matrix Amplifier

MATRIX POWER AMPLIFIER WITH EXTRAORDINARY PROCESSING POWER

Features:

  • 4-channel amplifier – 130 watts per channel
  • 4 ohm and constant voltage models available (70V or 100V)
  • 8-in x 4-out sophisticated matrix mixing makes routing easy
  • 8 microphone preamplifiers on euroblock connectors
  • Dual RCA and balanced euroblock inputs
  • Optional Dante networking (model no. DT44)
  • 44.1 kHz or 48kHz sample rate
  • 24-bit A/D D/A conversion
  • +48V phantom power
  • SD card slot for audio playback
  • AES/EBU digital input and output
  • Word Clock input and output
  • Remote control via Asystems RM wall remotes
  • Stand-alone control possible with monitor and mouse
  • Real-time error notifications via email reporting function
  • Remote user control through Asystems Windows software
  • DSP Processing:
    • Automatic Mixing
    • Compressor/Limiters
    • Feedback Silencers
    • 4-band EQs
    • Graphic Equalizers
    • 2- and 3-way Crossovers
    • Automatic level Control
    • Program Intuitive Ducker
  • Signal generator (pink noise, sine wave, sweep waves)
  • System monitoring with real-time Email reporting
  • Event scheduling
  • Password protected user accounts



Specifications:

DMA8413
Low Z, Stereo Mode, all channels driven RMS Power Output Per Channel
8Ω, 20Hz-20kHz 1% THD 80W
4Ω, 20Hz-20kHz 1% THD 130W
Low Z, Bridge Mode, all channels driven RMS Power Output
8Ω, 20Hz-20kHz 1%THD 260W
70.7V, 100V distributed output RMS Power Output Per Channel
20Hz-20kHz 1%THD, per channel 130W
Models Available 70.7V Constant Voltage
100V Constant Voltage
4Ω and 8Ω
Line Current Draw (all channels driven)
Line Current, Standby mode 190mA
Line Current, Idle (no signal) 540mA
Line Current, Typical (1/8 power pink noise) 2.85A
Line Current, Maximum (1/3 power sine wave) 6.00A
Signal to Noise (20Hz-20KHz, unweighted) >110dB
Distortion (SMPTE, typical) – 8 ohm load, 10dB below rated power <0.5%
Distortion (THD-N, typical) – 8 ohm load, 10dB below rated power, 20Hz-20kHz <0.5%
Frequency Response 20Hz-20kHz, +/-1dB
Damping Factor (8 ohm load, <1kHz) >250
Input Impedance 20K Ohm, balanced
Maximum Input Level +24dB
Cooling Temperature dependent speed-controlled axial fan
Control Network Onboard, compatible with standard 100MB Ethernet hardware
Front Panel Indicators 8 x Clip, -10dB, -20dB, Signal, Bridge (per pair) Power, Standby, Protect, Power Disable
Attenuators 8 x front panel, software, and remote
Input Connections Euroblock & Stereo RCA
Output Connections Euroblock
Amplifier Protection Inrush current limitation, temperature monitoring,  output over-current protection, mains fuses
Power Supply (Region Dependent) 120VAC, 230VAC, 50/60Hz,15A Edison cable
Dimensions (W x H x D) 483 x 89 x 394 mm (19” x 3.5” x 15.5”)
Weight 9.53 kg (21 lbs)



Click here to download Asystems DMA_series brochure

Click here to download Asystems DMA8825_8813_8425_8413 user manual
