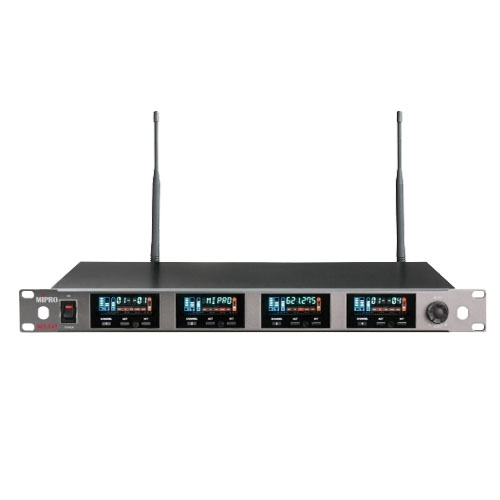

ACT 747 UHF One-U True Diversity Wireless Microphone System
Key Features:
- EIA Standard 1U rack-mountable metal receiver.
- Industry’s only full-color VFD screen.
- True diversity technology for best reception quality.
- One-touch AutoScan and ACT channel set-up.
- 104 factory preset channels (automatic scanable).
- Up to 16 preset compatible systems per frequency band.
- More compatible systems utilizing multiple bands.
- “PiloTone & NoiseLock” circuits minimize interference.
- RF, audio and transmitter battery meters.
- All controls are intuitive via a single rotary controller.
Specifications:
| RF Frequency Range | UHF 620~934 MHz |
| Bandwidth | 24 MHz |
| Preset Frequencies | 104 frequencies |
| Compatible Systems | 16 per frequency band |
| Channel Set-up | AutoScan & ACT technology |
| Frequency Response | 50Hz ~18KHz |
| S/N Ratio | ＞105dB(A) |
| T.H.D. | ＜0.5%@1KHz |
| Max. Output level | Unbalanced +10dBV / 0dBV / -6dB Balanced +16dBV / 0dBV / -6dB |
| Sensitivity | S/N＞80dB@6 dBμV input |
| Stability | ±0.005% (-10~50℃) |
| Dimensions | 482(W) x 44(H) x 260(D) mm 19.0 (W) x 1.7(H) x 10.2(D)” |
| Weight | 3.4 kg / 7.5lbs |
