ACT 515B Single-Channel Half-U True Diversity Wireless Microphone System
Equipped with a red/green backlit LCD on the control panel, the ACT-5 Series offers easy operation and is a valuable and user-friendly alternative. These transmitters are equipped with MIPRO’s latest ECM capsule module that delivers an exceptionally clear, accurate sonic image to the listener.The ACT-5 Series offers reliable performance and an affordable alternative for stage, karaoke and PA applications.
Features:

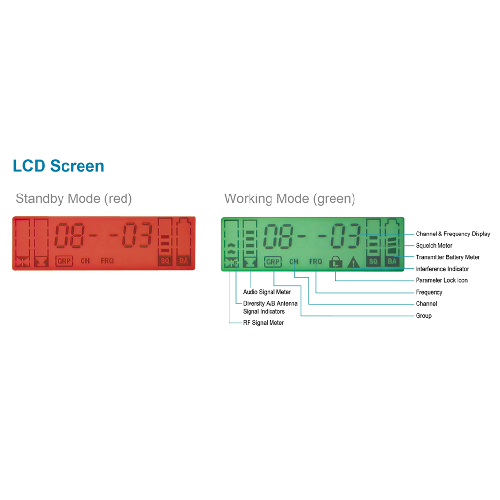

- Red/green backlit LCD. Easy to identify working mode (green) and standby mode (red) during performance.
- Advanced RF and IF circuitry to improve anti-interference characteristics and increase the number of compatible channels.
- True diversity receiving for best reception quality. “PiloTone & NoiseLock” dual-squelch circuit minimizes interference.
- Auto Scan function allows quick search for an interference-free working channel. World’s first ACT™ function provides precise and rapid frequency sync to the transmitters.
- Industry’s only RF interference warning indicator for proper adjustments of the SQ level. Increase sensitivity to extend receiving range; decrease the sensitivity to reduce interference.

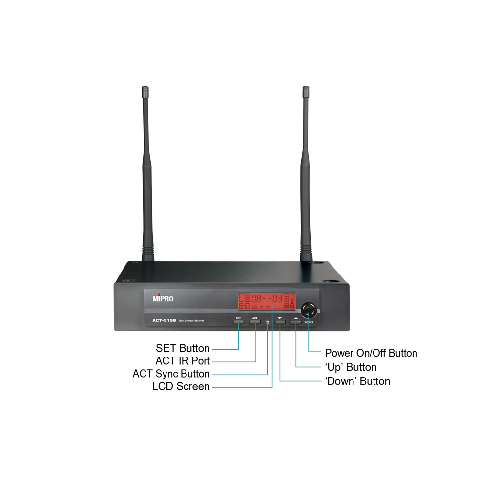

- All controls are intuitive and easily operated via electronic buttons to prevent accidental operation.
- Output level is pre-adjusted to equal the microphone capsule’s sensitivity. Switchable output levels for the best sound quality options.
- Receiver provides bias voltage for MIPRO antenna systems to enhance reception range and signal stability.
Specifications:
| Channel | Single | ||
| Chassis | EIA Standard 19 ” 1/2U | ||
| Display | Red/green backlit LCD | ||
| Frequency Range | UHF 480 ~ 934 MHz (country dependent) | ||
| Bandwidth | 24 MHz | ||
| Deviation | < ± 40 kHz | ||
| Receiving Mode | True diversity receiving | ||
| Sensitivity | 6 dBμV at S/N > 80 dB | ||
| S/N Ratio | > 105 dB (A) | ||
| T.H.D. | < 0.5% @ 1 kHz | ||
| Frequency Response | 50 Hz ~ 18 kHz, with high pass filter | ||
| Squelch | “PiloTone & NoiseLock” dual-squelch circuit | ||
| Audio Output | Balanced XLR & Unbalanced Ø 6.3 mm | ||
| Max. Output Level | Balanced: +16 dBV / 0 dBV ; Unbalanced: +10 dBV / 0 dBV | ||
| Power Supply | 12 ~ 15V DC, 1A | ||
| Dimensions (W × H × D) | 210 × 44 × 180 mm / 8.3 × 1.7 × 7.1 “ | ||
| Net Weight | Approx. 0.85 kg / 1.9 lbs | ||
| Note | Refer to actual product in the event of product discrepancy. Frequency range and maximum deviation comply with the regulations of different countries. |
Click here to download Mipro ACT-515B Single-Channel Half-U Wireless Microphone System
