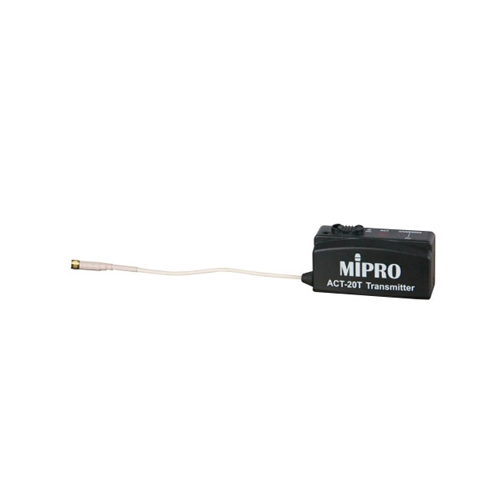

ACT 20T Ultra Miniature Wireless Transmitter
Features:
- Industry’s lightest UHF PLL-synthesized switchable transmitter. Works flawlessly with all MIPRO ACT receivers.

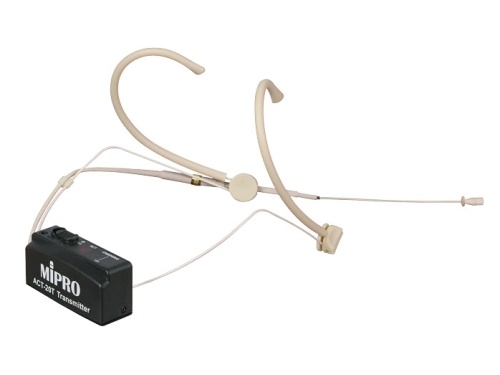

- Can be attached to MU-23 headworn microphone for a true wireless experience with no bodypack and no wired cable, allowing complete freedom of mobility for performers.
- Built-in rechargeable lithium battery for money savings.
- 6~8 Hours of operation per charge.
Specifications:
| Oscillation Mode | Phased-Locked Loop (PLL) Technology |
| Frequency Range | UHF 620~934MHz |
| Bandwidth | 24MHz |
| Channel Set-up | ACT Sync (Automatic Channel Targeting) |
| RF Output Power | 30mW (according to local regulations) |
| Spurious Emissions | <-55dBc |
| Max. Deviation Range | ±68KHz |
| Battery | Lithium Polymer |
| Operating Time | >6 hours |
| Dimensions | 57(W)×28(H)x20(D)mm / 2.2(W)x1.1(H)x0.8(D)” |
| Weight | Approx. 38g / 1.3oz |
| Patent & Approvals | Products carry various patents and comply with telecommunication and safety regulations. |
| Note
| Refer to actual product in the event of product discrepancy. Frequency range and maximum deviation comply with the regulations of different countries. |
