48 kHz sample rate, 24-bit 256x over-sampled Delta-Sigma AD, DA
USB A & B ports for memory storage and computer interface (PC and Mac)
XLR inputs and outputs, AES-EBU digital input
+24 dBu inputs and outputs
Phantom power +48 volt
Built-in signal generator (white, pink, sine)
Easy preset and system updates via Internet
Fully adjustable crossover points
Easy-to-read LCD screen
Features per input: 27-band Graphic EQ Autograph® algorithm for automatic EQ settings, Compressor/Limiter, Delay (340 ms)
Features per output: Crossover/Bandpass filter (Butterworth, Bessel, Linkwitz-Riley), Parametric EQ (5-band, HP, LP Notch, Horn EQ, All-Pass), Compressor/Limiter, Delay with polarity inversion
2 input/6 output loudspeaker DSP management system
Weight Unpacked: 7.00 lb(3.175 kg)
Weight Packed: 9.00 lb(4.082 kg)
Width Packed: 4″(10.16 cm)
Height Packed: 23.62″(59.9948 cm)
Depth Packed: 11.75″(29.845 cm)

Click Here to Download VSX-26 PDF

$25.99 $15.99

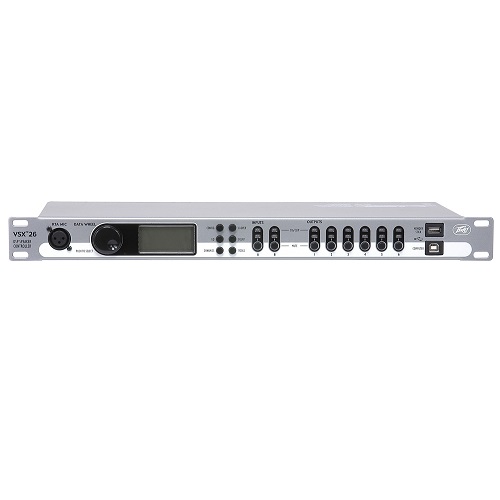

The VSX 26 is a fully progammable 32-bit audio processing and louspeaker management control system. Considerably more

powerful than similarly priced units, the VSX 26 provides a versatile and economical alternative for system designers.
