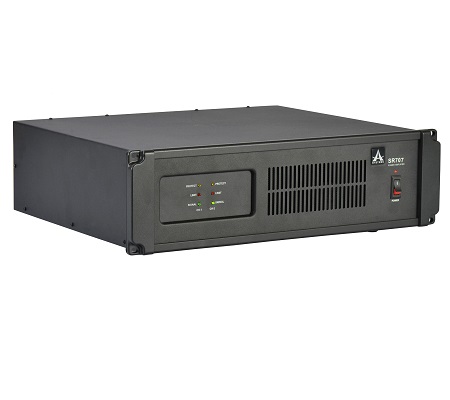

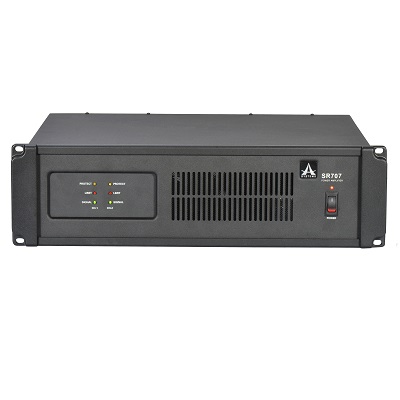

SR707    700 Watt Power Amplifier

POWER AMPS SPECIFICALLY DESIGNED FOR CONTRACTORS

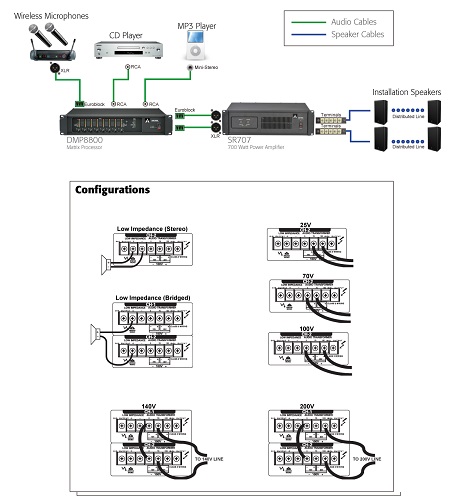

The feature-packed SR series of power amplifiers is versatile, rugged and time-tested. The Asystems SR707 power amplifier is specifically designed with the needs of sound contractors in mind. Output is selectable between low-impedance, or 25V, 70V and 100V Line operation, dependent on wiring. Looking to expand your system? An XLR thru output is also available on each channel for line-level signals to additional amplifiers. Each amplifier channel has a separate toroidal secondary transformer that provides full electrical isolation and ensures maximum audio separation. Features like power up muting, full short-circuit, temperature, DC offset protection and a built-in 45 Hz subsonic filter help make the SR series an attractive, attractive solution for any audio installation.



Features:

  • Output power: 2 x 350W at 4 ohms, 70V or 100V
  • Low impedance output (2 ohms): 550W per channel
  • Stereo, bridge or parallel operation modes selectable via rear mounted switch
  • XLR and barrier strip input connectors
  • Line-level XLR ‘thru’ output connectors
  • Output via covered barrier strips
  • Wide range of protection circuitry and rumble/electrical filters for complete peace of mind
  • Toroidal output transformers provide full electrical isolation and meet worldwide safety standards
  • Rack mountable design taking up 3 standard rack spaces (19″ rack)
  • Automatic dual-speed, high-efficiency cooling fan



Specifications:

Direct Power Out
8 ohm 240 Watts x 2
4 ohm 400 Watts x 2
2 ohm, 1kHz, 1%THD 550 Watts x 2
Bridged mono 8 ohm, 1kHz, 1%THD 800 Watts
Bridged mono 4 ohm, 1kHz, 1%THD 1100 Watts
Isolated Constant Voltage Out
200V or 140V Bridge 400 Watts
100V or 70V 350 Watts x 2
25V 280 Watts
Frequency Response
Direct Outputs (+0/-2dB) 50Hz – 50kHz
Isolated Outputs (+0/-2dB) 50Hz – 16kHz
Total Harmonic Distortion <0.05
Sensitivity (for full output) 1.02V
Voltage Gain 28dB
Input Impedance
Balanced/Unbalanced 20k/10k ohm
Damping Factor >200 (direct output)
S/N Ratio Less than 100dB below rated output (20Hz – 20kHz)
Protection Circuits Output offset voitage protection
Heat sink overheat protection
Transformer overheat protection
Load shorting protection
Power on/off protection
Controls
Front Panel Power Switch

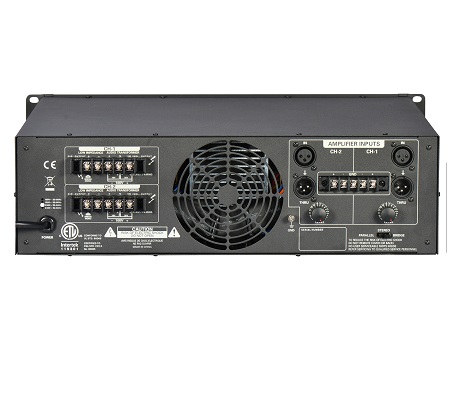

Rear Panel Ch 1 & Ch 2 gain controls (41 click); Parallel/Stereo/Bridge Switch
Connectors
Input XLR Jack x 2, Barrier Strip x 1
Output Covered Barrier Strip x 2; Heavy-Duty Binding Post
Cooling One dual speed fan
Indicators Clip: Red
Signal: Green
Protect: Yellow
Power: Red
Dimensions (HxWxD) 132 x 480 x 428mm (5.2” x 19” x 16.9”)
Net Weight 24.7 Kg (54.6 lbs)

Click here to download Asystems SR 703 & SR 707 Power Amplifiers Brochure

Click here to download Asystems SR703 & SR707 Power Amplifier user manual
