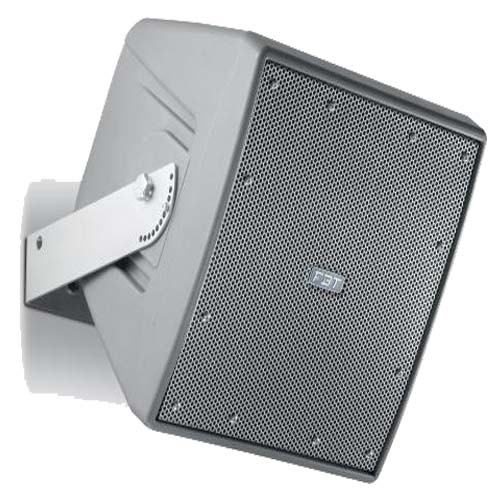

Shadow-108CT
FB_Shadow108CT_02_0312

Multipurpose 8” Coax
450W/8ohm – 124dB SPL

Features:

  • 8” coaxial woofer with 2” coil and 1” HF driver with 1.4” coil on conical 90° horn
  • 100V line transformer with selectable100W/50W power tapping
  • Sturdy molded polyethylene curved enclosure
  • Steel U bracket and other included hardware accessories
  • 4 wires cable to select the desired power tapping
  • Water-stop grill with 3 layers of protection
  • IP55 weather resistant
  • Standard grey finish
  • RAL 7011



Specifications:

Code: 36193
Configuration: 2 way
Recommended amplifier: 450 W RMS
Long Term power: 225 W
Short term power: 900 W
Transformer: 100/100 V
Nominal impedance: 8 ohm
Frequency response: 80Hz – 20KHz -6dB
Low Frequency woofer: 8 – 2 coil inch
AES power: 200 W
High frequency driver: 1 – 1.4 coil inch
Sensitivity (@1W/1m): 95 dB
Maximum SPL cont/peak: 120/124 dB
Dispersion: 90° conical HxV
Crossover Frequency: 1.8 KHz
Recommended HP filter: 60hz – 24dboct
Input connector: 4 wire cable
Net Dimension (WxHxD): 285x285x250 – 11.22×11.22×9.84 mm/inch
Net Weight: 7/15.4 kg/lb
Transport Dimension (WxHxD): 365x365x330 – 14.37×14.37×12.99 mm/inch
Transport Weight: 9/19.8 kg/lb

Click here to download FBT Shadow Series – low res PDF
