RM 4

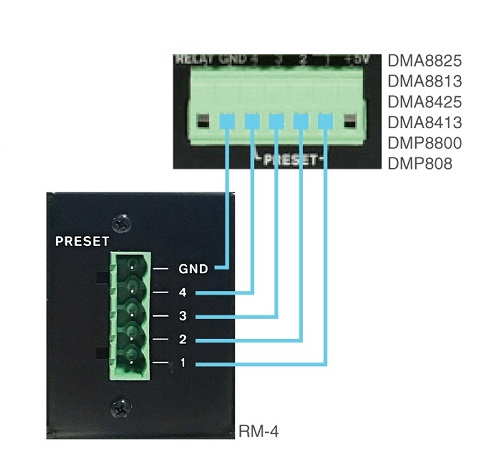

RM 4 wiring

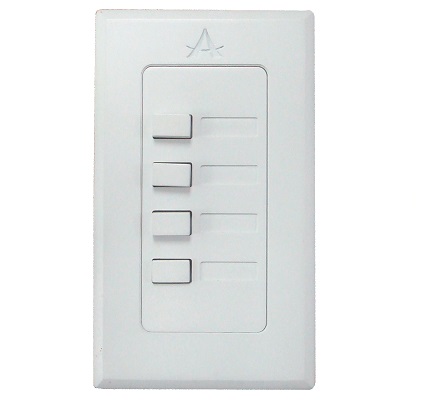

RM 4  Wall-Mount Remote Preset Recall

DISCRETE LIGHT-SWITCH STYLE REMOTE CONTROL

Features:

  • Compatible with Asystems’ entire range of digital matrix products
  • Allows for immediate remote recall of presets through latching push buttons
  • Wired via standard Euroblock connectors
  • ‘Light-switch’ style design for discrete installation
  • Display window available for easy labelling
  • Compatible with DMA series matrix amplifiers and DMP8800 and DMP808 processors

Specifications:

RM-4
Connectors 1 x 5-pin Euroblock
Controls 4 x Latching Switches
Compatible Products DMA8825
DMA8813
DMA8425
DMA8413
DMP8800
DMP808



Click here to download Asystems RM-2VR_RM-4_RM-6E brochure

Click here to download Asystems RM 4 user manual
