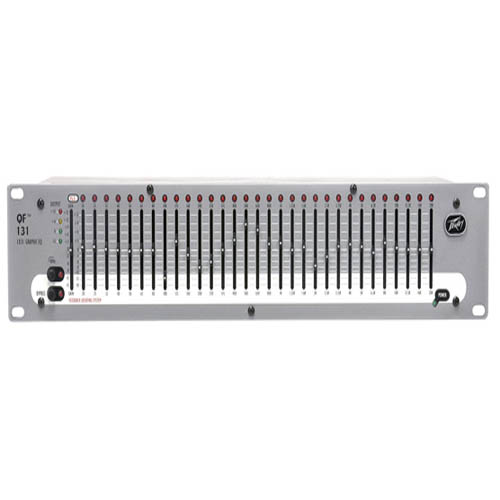

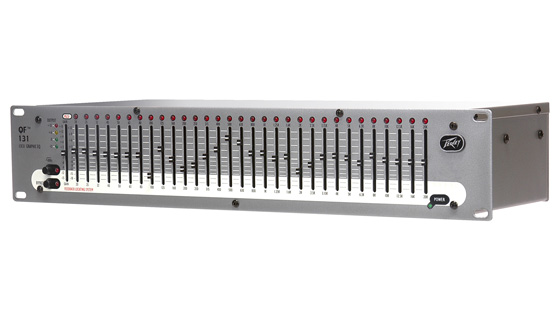

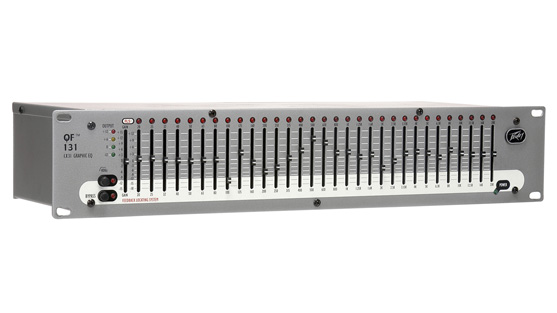

qf-131
00458200_921400458200_921300458200_9212

Features:



31-band graphic EQ with +12 dB boost/-18 dB cut per band
1/3 octave filter sets
Constant Q filters
Output level LEDs (-12 to +24 dB)
18 dB per octave 40 Hz low-cut filter with status LED
20 Hz to 20 kHz effective EQ range

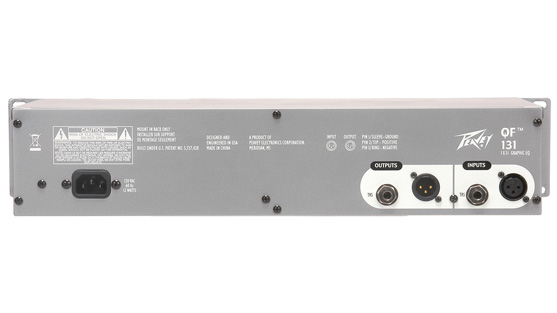

XLR and 1/4 inch TRS inputs/outputs for balanced or unbalanced operation
Bypass switch with status LED
New improved FLS® circuitry for greater sensitivity
Weight Unpacked: 9.00 lb(4.082 kg)
Weight Packed: 11.00 lb(4.989 kg)
Width Packed: 6.12″(15.5448 cm)
Height Packed: 22.25″(56.515 cm)
Depth Packed: 10.25″(26.035 cm)

Click Here to Download QF-131 PDF

$25.99 $15.99

The QF family features one dual-channel model and one single-channel unit, all incorporating Peavey’s legendary low-noise, low-distortion design. Ruggedly constructed, QF Series EQs have 45 mm, center-detented control sliders enclosed in metal for durability. These two rack-space units also offer ±15 dB gain control and an LED display indicating output level. Other shared features include switchable low-cut filters, +21 dBu balanced inputs and outputs, and bypass switches. QF Series equalizer filters are set at ISO center frequencies within 3% accuracy. Whether on stage, in the studio, or simply tweaking your home hi-fi system, the QF Series has an EQ for you.
