PROMAXX 114 a

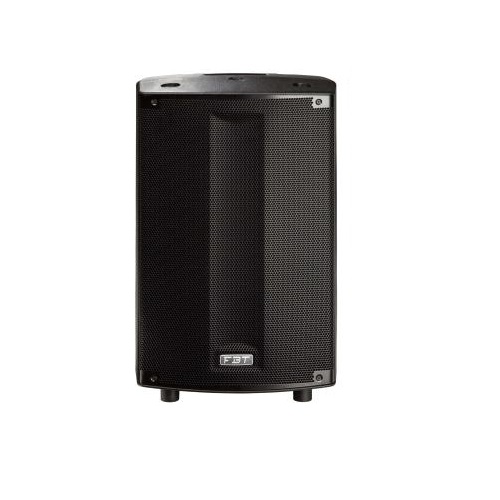

PROMAXX 114 a frontProMaxx 110a_gallery2ProMaxx 110a_gallery3ProMaxx 110a_gallery1

Equipped with custom FBT speakers complete with B&C’s renowned compression driver technology, PROMAXX combines true made-in-Italy quality and style. At its heart is a purpose-built FBT amplifier module with a switch-mode power supply. For the low frequency section, 700W RMS is driven via a highly efficient Class-D topology, boasting extremely low THD. For HF, meanwhile, 200W RMS is delivered by a Class-H / AB design chosen to ensure the highest definition of audio performance at high frequencies.

Also onboard is a powerful digital signal processing (DSP) platform made available to users of all levels thanks to an intuitive graphical user interface. Located on the rear of the enclosure, the menu-driven system is navigated via a single rotary control with push-to-select functionality.

Users can choose between 6 equalizer presets, each carefully designed by FBT engineers to ensure that every application is catered for (see below). Additionally, 2 preset slots are available for users to form their own designs, using 5 parametric equalizers per slot. Also available is a high-pass filter, a mic/line selector, low, mid and high tone settings and an optional delay of between 0 and 3.5 metres. Finally, users can exclusively choose between two limiter modes, MAX-SPL or MAX-QUALITY, to best suit their performance.

The PROMAXX feature-set is matched by the enclosure’s versatility, with options for pole-mounting, wall-hanging, suspension or even deployment in an array. The result is the most accessible PROMAXX yet.

Features:

  • 2-way, bi-amplified, bass reflex design cabinet
  • Biamped: 700W RMS LF, 200W RMS HF, power amplifiers in Class D for LF and in Class H/AB for HF with switch mode power supplies
  • Digital signal processor with graphic display
  • Control Panel features balanced XLR/Jack input, XLR LINK OUT, 2 x Volume, RCA Stereo input, DSP display with rotative encoder and push
  • 2 x M10 suspension points, 35 mm (1,3/8”) top-hat speaker stand socket, wall bracket mount flange plate
  • 90°H x 60°V constant directivity horn
  • Front of House or Stage Floor Monitor: with 12°, 40° and 55° monitoring angles
  • 355 mm (14”) LF neodymium magnet woofer with 75mm (3”) voice coil, custom made for FBT by B&C
  • 35 mm (1,4’’) exit throat B&C HF compression driver with 64 mm (2,5”) voice coil
  • Frequency response from 45Hz to 20 kHz
  • Compact Dimensions: ProMaxX 114A uses the same size gas-injected polypropylene molded enclosure as the ProMaxX 112A, but features our  14” LF Woofer for lower frequency SPL
  • Full grille design with black acoustic cloth
  • Extremely light, only 17,4 kg / 40.78 lb

Specifications:

Code: 40603
Configuration: 2 way
Built-in amplifier LF/HF: 700/200 W RMS
Built-in amplifier peak LF/HF: 1400/400 W
Frequency response: 45Hz-20KHz -6dB
Low Frequency woofer: 14 – 3 coil neodymium inch
High Frequency driver: 1.4 – 2.5 coil inch
Maximum SPL cont/peak: 127.5 / 135.5 dB
Dispersion: 90° x 60° HxV
Input impedance: 22 Kohm
AC Power requirements: IEC VA
Input connector: XLR with loop, RCA ST
Power cord: 5/16.4 m/ft
Net Dimension (WxHxD): 402x644x345 / 15.8×25.4×13.6 mm/inch
Net Weight: 17.5/40.78 Kg/lb
Transport Dimension (WxHxD): 500x745x440 / 19.7×29.3×17.3 mm/inch
Transport Weight: 20.1/44.31 Kg/lb

Click here to download FBT PROMAXX 114A brochure

Click here to download FBT PROMAXX 114A User Manual
