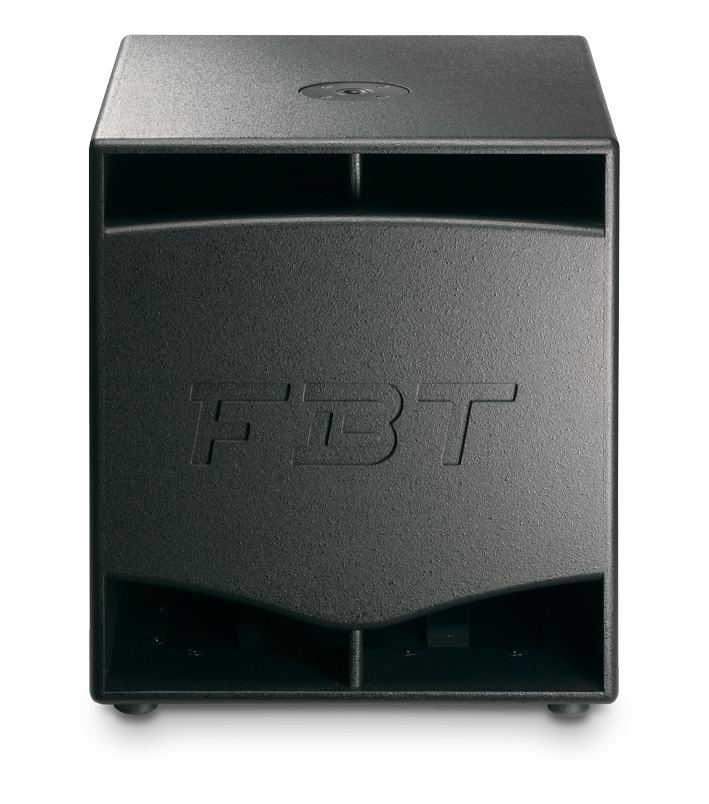

ProMaxx-15SA

Features:

  • Compact band-pass design subwoofer with high SPL and punch
  • 380 mm (15”) high excursion woofer with 75 mm (3”) voice coil, custom made for FBT by B&C
  • Frequency response from 38Hz to 120Hz
  • 1200W RMS Class D power amplifier with switch mode power supply
  • Digital Signal Processor with 8 presets, 2 equalization with 4 LPF different frequency
  • Control Panel with XLR input and link out, Volume, EQ Presets, Delay, Phase Switch 0°-180°, Ground-Lift Switch
  • 15mm (5/8”) Baltic birch plywood cabinet with scratch & scuff resistant paint finish
  • M20 (20 mm) top mount speaker stand socket, two aluminum carrying handles
  • Provides additional low frequency reinforcement when used along with 2 – way ProMaxX speakers



Specifications:

Code: 1
Configuration: 800 way
Built-in amplifier LF/HF: 1200 W RMS
Built-in amplifier peak LF/HF: 2400 W
Frequency response: 38Hz – 120Hz -6dB
Low Frequency woofer: 1×15 – 3 coil neodymium inch
Maximum SPL cont/peak: 132/136 half-space dB
Dispersion: omnidirectional HxV
Input impedance: 22 Kohm
Crossover Frequency: preset dependant KHz
AC Power requirements: 640 VA
Input connector: XLR with loop
Power cord: 5/16.4 m/ft
Net Dimension (WxHxD): 507x585x605 / 20x23x23.82 mm/inch
Net Weight: 31/68 kg/lb
Transport Dimension (WxHxD): 615x670x715 / 24.2×26.4×28.2 mm/inch
Transport Weight: 35/77 Kg/lb

Click here to download FBT Speakers FBT_ProMaxX-2010_ENG PDF
