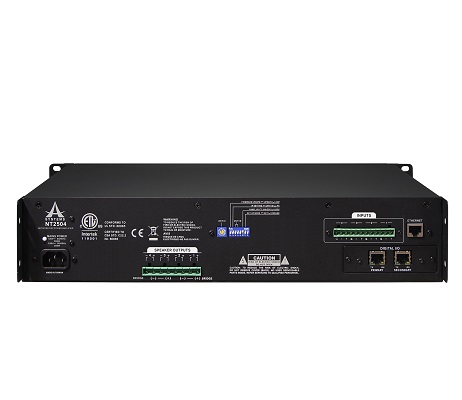

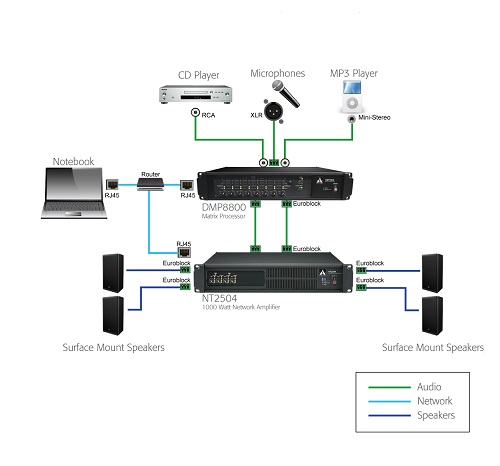

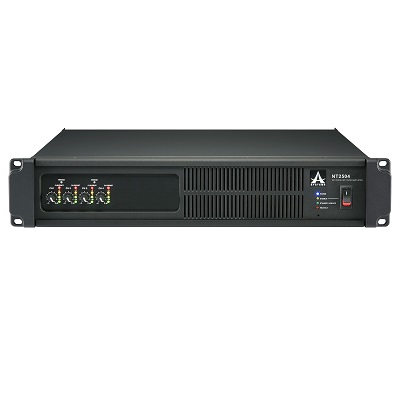

NT 2504 sideNT 2504 backNT 2504 APP

NT 2504  1000 Watt 4-Channel Networking Amplifier with DSP Processing

VERSATILE DIGITAL NETWORK AMPLIFIER WITH DSP PROCESSING

Features:

  • 4-channel amplifier – 250 watts per channel
  • 4 ohm and constant voltage models available (70V or 100V)
  • 4-in x 4-out sophisticated matrix mixing makes routing easy
  • Optional Dante networking (model no. DT44)
  • Internal sampling rate set at 48kHz
  • 24-bit A/D D/A conversion
  • Extensive internal signal processing
  • Remote user control through Asystems Windows software
  • Real-time error notifications via email reporting function
  • DSP Processing:
    • Automatic Mixing
    • Limiters
    • 10-band EQs
    • 2- and 3-way Crossovers
    • Output Delay
  • Password protected user accounts

Specifications:

NT2504
Low Z, Stereo Mode, all channels driven (RMS Power Ouput Per Channel)
8Ω, 20Hz-20kHz 1%THD 150W
4Ω, 20Hz-20kHz 1%THD 250W
Low Z, Bridge Mode, all channels driven (RMS Power Output)
8Ω, 20Hz-20kHz 1%THD 500W
Distributed Output (RMS Power Output Per Channel)
70V, 100V, 20Hz-20kHz 1%THD 250W
Models Available 4Ω and 8Ω / 70.7V Constant Voltage / 100V Constant Voltage
Please consult your sales assistant for information on ordering the model that is best for you
System Amp Circuitry D
Input Sensitivity 1.42 Vrms
Distortion (SMPTE-IM) <0.02%
Noise (Unweighted 20 Hz – 20 kHz below rated power) 107 dB
Damping Factor >300 @ 8Ω
Frequency Response 20 Hz-20kHz +-1dB; -3dB: 5Hz-50kHz
Input Impedance 20 kΩ balanced; 10 kΩ Unbalanced
Cooling Variable Speed Fans – front to rear flow
Indicators -40dB,-6dB, -3dB, Clip/Protect, Bridge (one per two-channel group), Power, Disable, Standby/Unlock, Protect
Front Panel AC power switch & gain control
Control Operation Mode Stereo / Bridge Mono
Voltage Gain 40 x (32 dB)
Network Control Built-in Ethernet, 10/100 Mbit/s
Connections Input (Line-level) 4 x 3-pin Euroblock Connectors
Output (Powered) 4 x 2-pin Euroblock Connectors
Protection Circuitry Amplifier Protection Totally Short / Open / Overheat / VLF / RF protection / Mismatched loads stabilize the transition
Load Protection On / Off squelch / AC coupling / Triac crowbar (each channel)
Power Supply Power Consumption 375W
Power Requirements (Region Dependent) 100 – 120VAC, 220 – 240VAC, 50/60Hz
