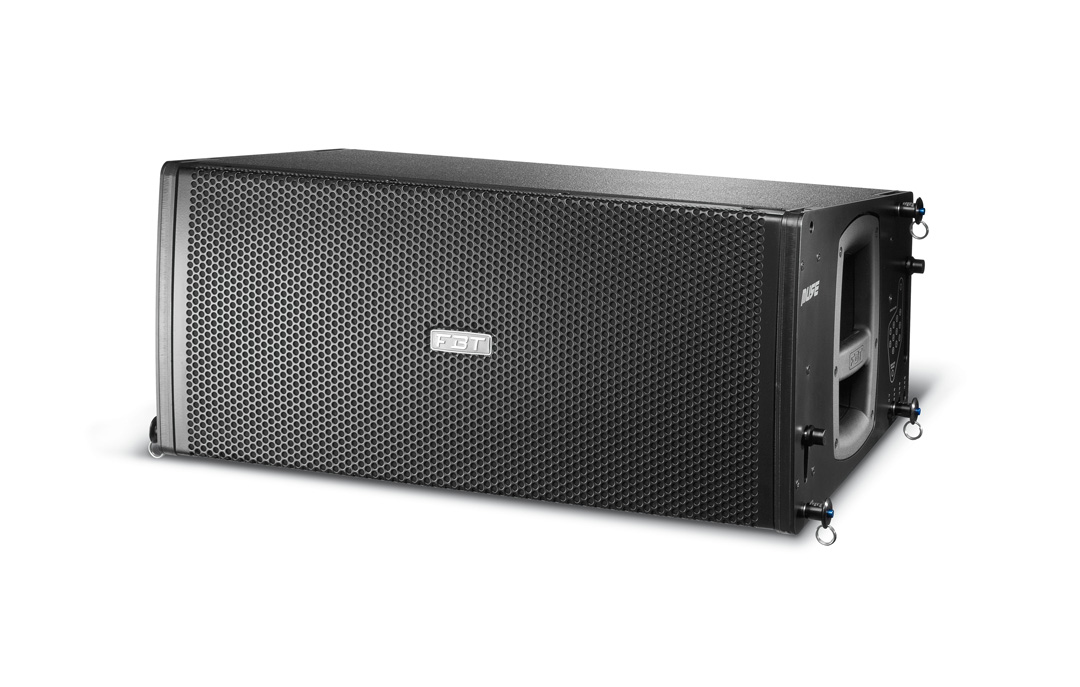

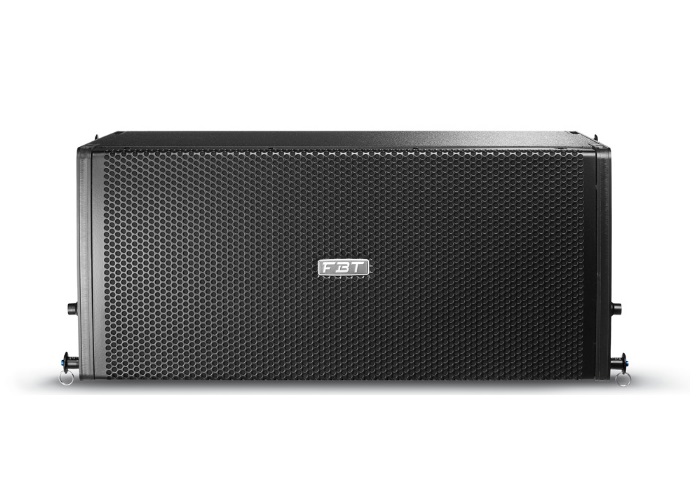

MUSE 210LA Precision Coverage Active Line Array Speaker

Features:

Precision coverage vertical active array
600W + 300W RMS – 135dB SPL

2-way, compact bass-reflex line array system

Two 250mm (10″) woofers with 64mm (2.5″) voice coils

Two custom B&C HF compression drivers with 25mm (1″) throats

Precision waveguide delivering 90° of horizontal dispersion up to 18Khz

Frequency response from 55Hz to 20KHz

Onboard Class-D bi-amp system delivering 600Wrms and 300Wrms for LF and HF with switch-mode power supplies

Onboard DSP processor with 8 EQ presets, adjustable HF level of +/- 5db for accurate amplitude shading

Control panel with XLR input and link, preset control, HF level control, HP-filter and ground lift

Strong birch plywood cabinet with integrated aluminum handles, hardware and fly-ware offering adjustable angling ranging from 0° to 10° in 1° increments

Wide range of accessories to offer ultimate flexibility no matter whether your MUSE line array system is suspended or ground-stacked, plus a specially designed cover to guard against bad weather

Specifications:

Code:

38773

Built-in amplifier LF/HF:

600/300 W RMS

Built-in amplifier peak LF/HF:

1200/600 W

Frequency response:

55Hz – 20kHz -6dB

Low frequency woofer:

2×10 – 2.5 coil inch

High frequency driver:

2×1 – 1.7 coil inch

Maximum SPL cont/peak:

128/135 dB

Dispersion:

90° x 10° max dependant upon n° of element H x V

Input impedance:

22 Kohm

Crossover frequency:

1.1 KHz

Ac power requirements:

640 VA

Input connector:

XLR with loop

Net Dimension (WxHxD):

713x296x425 – 28.07×11.65×16.73 mm/inch

Net weight:

38.2 / 84.21 kg/lb

Transport Dimension (WxHxD):

790x375x520 – 31.10×14.76×20.47 mm/inch

Transport weight:

41/90.38 kg/lb

A true line array system encompassing advanced technology and refined Italian engineering – these are the principles behind MUSE, a new sound reinforcement solution from FBT that redefines the modern line array in terms of power, size, light weight, flexibility and ease of use. True modularity means that MUSE is ready for any application, from a small installation using two enclosures to a large outdoor concert deploying 16 speakers per hang.
