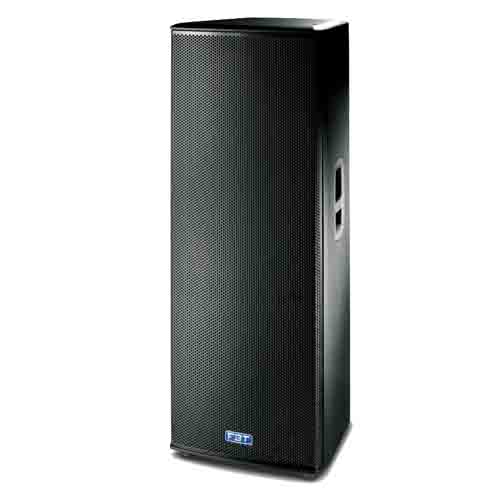

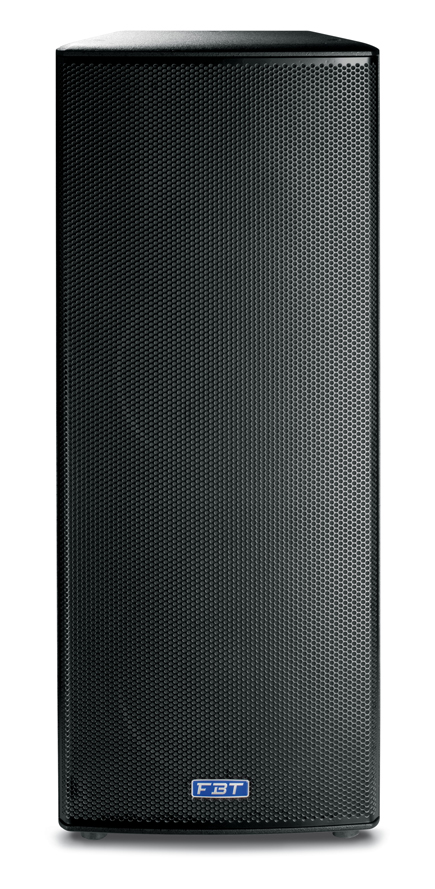

1600W/4ohm – 138dB SPL Passive reinforcement speaker

  • Hi-grade passive internal crossover featuring “soft-trip” circuitry protection of LF and HF transducers
  • Speakon NL – 4MDV connectors IN & LINK OUT



Code: 35963
Configuration: 2 way
Recommended amplifier: 1600 W RMS
Long Term power: 800 W
Short term power: 2800 W
Nominal impedance: 4 ohm
Frequency response: 47Hz – 20Khz -6dB
Low Frequency woofer: 2×15 – 3 coil neodymium inch
High frequency driver: 1×2 – 3 coil inch
Sensitivity (@1W/1m): 103 dB
Maximum SPL cont/peak: 134/138 dB
Dispersion: 60°x40° HxV
Crossover Frequency: 1.2 KHz
Recommended HP filter: 40hz – 24dboct
Recommended external filter:
Input connector: 2x speakon NL4MD-V in & thru
Net Dimension (WxHxD): 493x1245x471 – 19.04x49x18.5 mm/inch
Net Weight: 48/105.82 kg/lb
Transport Dimension (WxHxD): 618x1355x610 – 24.3×53.3×24 mm/inch
Transport Weight: 53.5/177.94 kg/lb

Click here to download FBT Mitus-215 brochure
