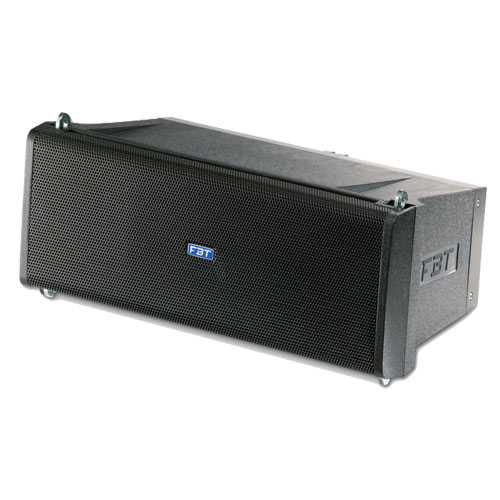

Mitus-206L
FB_Mitus206L_fronte

Features:

  • Compact 2-way, bass-reflex design
  • Passive version, recommended amplifier of 500Wrms / 16ohm LF and 150 Wrms / 16ohm HF
  • Internal HF protection
  • Neutrik Speakon NL- 4MDV connectors IN & LINK OUT
  • External digital processor requie
  • 2 x 6.5’’ (165 mm) B&C neodymium woofers with 1.7’’ (44 mm) coil
  • 1.4’’ (36 mm) exit B&C neodymium driver with 2.5’’ (64 mm) coil
  • Frequency response from 75Hz to 20KHz
  • 100° horizontal waveguide with very low distortion and near flat wavefront up to 18Khz
  • High impact polypropylene  gas-injected enclosure with integrated rigging hardware adjustable with 0° to 10° angle between cabinets at 2° step
  • Ideal for small to medium sized application, from single pole mounted loudspeakers with 100°H x 10°V coverage to multiple cabinet full sized line array, the MITUS 206L maybe used also in outdoor applications where the system is not directly exposed to the elements
  • Wide range of hardware accessories for flying and ground stacked configurations
  • Very lightweight, only 13.5Kg



Specifications:

Code: 32085
Configuration: 2 way
Recommended amplifier: 500LF/150HF W RMS
Long Term power: 250LF/70HF W
Short term power: 1000LF/300HF W
Nominal impedance: 16LF/16HF ohm
Frequency response: 75Hz – 20Khz -6dB
Low Frequency woofer: 2×6.5 – 7.1coil neodumium inch
High frequency driver: 1×1.4 – 2.5 coil neodymium inch
Sensitivity (@1W/1m): 97LF/108HF dB
Maximum SPL cont/peak: 125/129LF – 129/133HF dB
Dispersion: 100°x10° max dependant upon n° of element HxV
Crossover Frequency: external active KHz
Recommended HP filter: 65Hz – 24dboct
Recommended external filter: Digital management with FBT presets
Input connector: 2 x speakon NL4MD-V in & thru
Net Dimension (WxHxD): 574x220x383 – 22.6×8.7×15.1 mm/inch
Net Weight: 13.5/29.8 kg/lb
Transport Dimension (WxHxD): 655x455x280 – 25.8×17.9×11 mm/inch
Transport Weight: 15.2/33.5 Kg/lb

Click here to download FBT MITUS SERIES PDF
