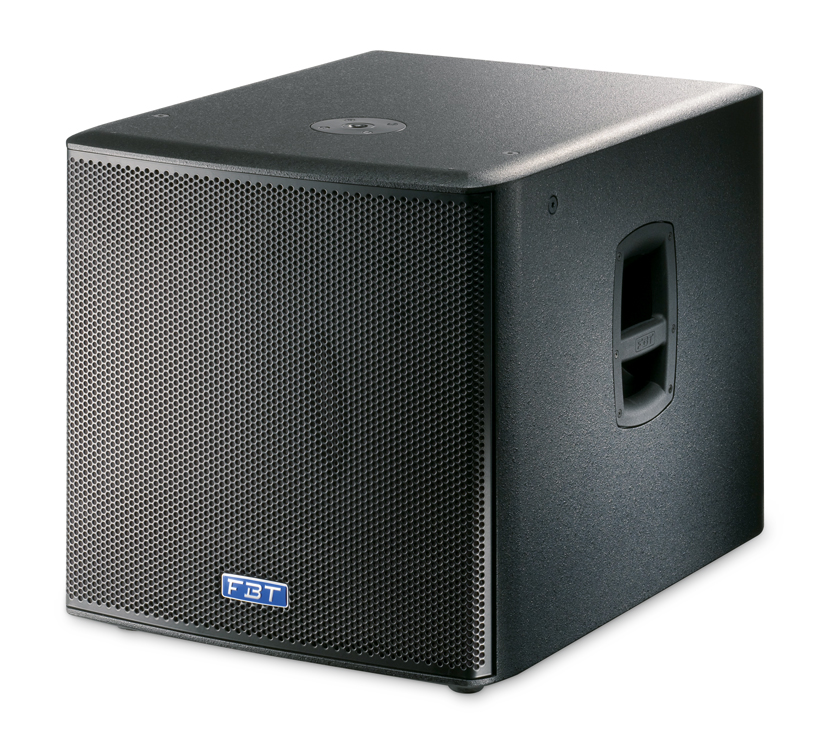

Mitus-118SA

Features:

  • Compact vented band pass subwoofer design enclosure
  • 460 mm (18’’) custom B&C neodymium magnet high excursion woofer with 75 mm (3’’) voice coil
  • Frequency response from 36Hz to 100Hz
  • Class D amplifier delivering 1200WRMS
  • Switch mode power supply
  • DSP with 8 presets, cardioids and infra configurations, delay
  • Control panel with XLR input and link, volume, presets, delay, phase 0°-180°, groundlift
  • 18 mm (3/4’’) birch plywood enclosure, scratch resistant black paint
  • Eight M10 fly points, M20 top mount stand socket and two FBT design aluminum handles
  • Optional 4 swivel-mount casters 80 mm (3.15’’) on request
  • Perfect low-frequency extension for the MITUS range and an ideal companion for the MITUS 206LA line array for ground stack applications with optional MTB206 metal base



Specifications:

Code: 31757
Configuration: 1 way
Built-in amplifier LF/HF: 1200 W RMS
Built-in amplifier peak LF/HF: 2400 W
Frequency response: 36Hz – 100Hz -6dB
Low Frequency woofer: 1×18 – 3coil neodymium inch
High Frequency driver: – inch
Maximum SPL cont/peak: 135/139 half-space dB
Dispersion: omnidirectional HxV
Input impedance: 22 Kohm
Crossover Frequency: preset dependent KHz
AC Power requirements: 640 VA
Input connector: XLR with loop
Power cord: 5/16.4 m/ft
Net Dimension (WxHxD): 574x594x730 – 22.6×23.4×28.7 mm/inch
Net Weight: 47/103.6 kg/lb
Transport Dimension (WxHxD): 460x775x765 – 18.1×30.5×30.1 mm/inch
Transport Weight: 56.2 / 123.9 Kg/lb

Click here to download FBT MITUS SERIES PDF
