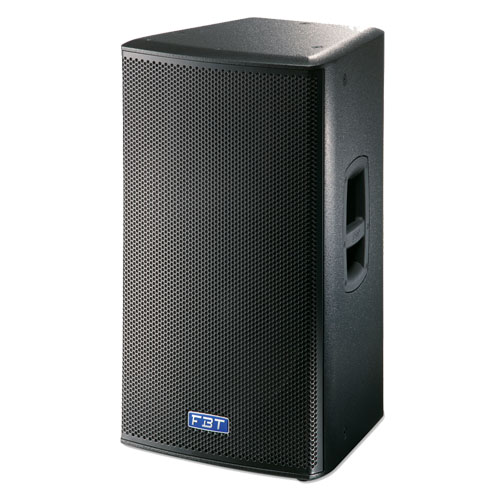

Mitus-115

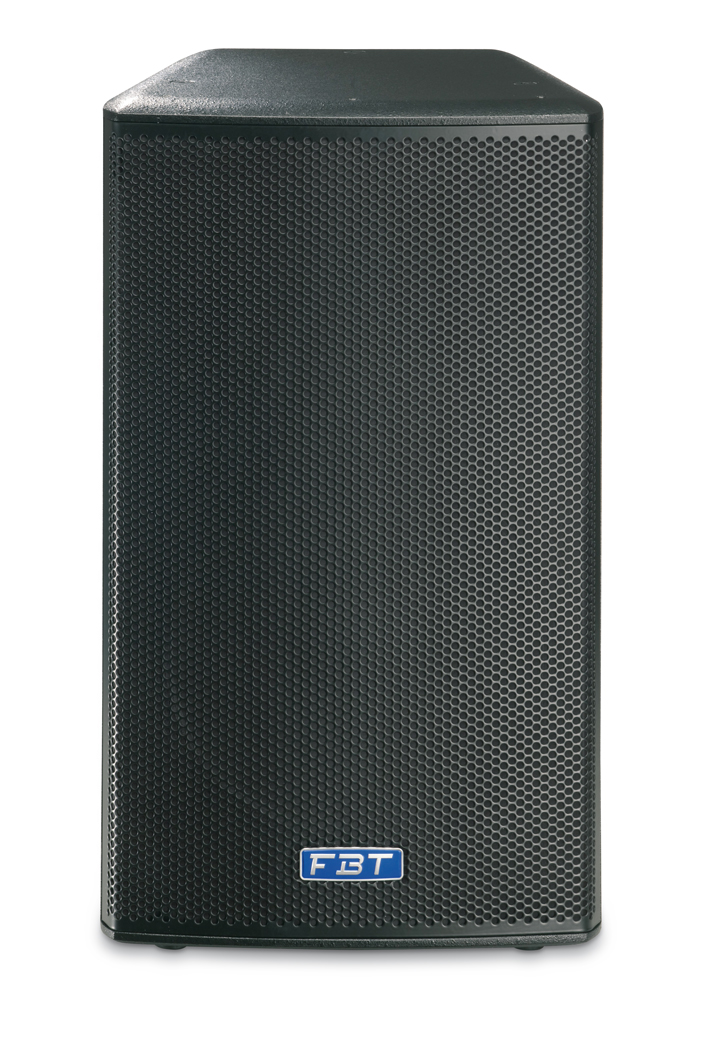

FB_Mitus115_fronte

Features:

  • 2-way bass-reflex design
  • Passive version, recommended amplifier of 800Wrms / 8ohm
  • 380 mm (15”) B&C neodymium magnet woofer with 75 mm (3”) voice coil
  • 25 mm (1”) exit B&C neodymium magnet HF driver with 44 mm (1.7’’) voice coil with 80°H x 50°V rotatable horn
  • Frequency response from 50Hz to 18KHz
  • Hi-grade passive internal crossover featuring “soft-trip” circuitry protection of LF and HF
  • Speakon NL – 4MDV connectors IN & LINK OUT
    • 15 mm (5/8”) birch plywood enclosure, scratch resistant black paint finish
    • Eight M10 fly points, 35 mm (1.38’’) speaker stand socket and two FBT design aluminium handles
    • Ideal for live sound reinforcement applications as front of house main PA. Also suited for permanent installations
    • Very lightweight, only 26Kg



Specifications:

Code: 31860
Configuration: 2 way
Recommended amplifier: 800 W RMS
Long Term power: 400 W
Short term power: 1400 W
Nominal impedance: 8 ohm
Frequency response: 50Hz-18Khz -6dB
Low Frequency woofer: 1×15 – 3 coil noedymium inch
High frequency driver: 1 x 1 – 1.7 coil inch
Sensitivity (@1W/1m): 100 dB
Maximum SPL cont/peak: 128/132 dB
Dispersion: 80°x50° HxV
Crossover Frequency: 1.6 KHz
Recommended HP filter: 4oHz – 24dboct
Input connector: 2 x speakon NL4MD-V in & thru
Net Dimension (WxHxD): 425x750x421 – 16.7×29.5×16.6 mm/inch
Net Weight: 26/57.3 kg/lb
Transport Dimension (WxHxD): 550x560x860 – 21.7×22.1×33.9 mm/inch
Transport Weight: 28.5/62.8 kg/lb

Click here to download FBT MITUS SERIES PDF
