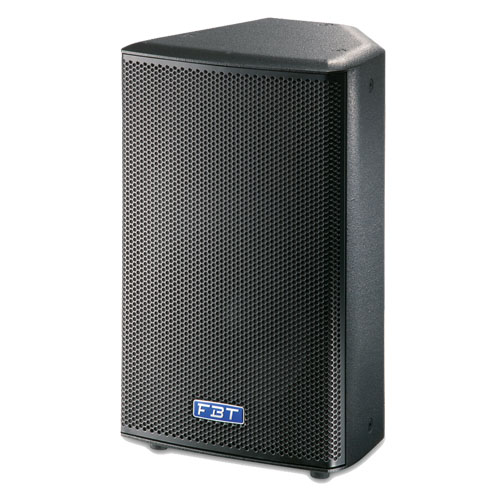

Mitus-112A
FB_mitus114A_fronte

Features:

  • 2-way, bi-amplified, bass-reflex design
  • 320 mm (12’’) B&C neodymium magnet woofer with 75 mm (3’’) voice coil
  • 25 mm (1’’) exit B&C neodymium magnet HF driver with 44 mm (1.7’’) voice coil with 80°H x 50°V rotatable horn
  • Class D amplifiers, 600WRMS to the LF and 300WRMS to the HF, switch mode power supply
  • Frequency response from 50Hz to 20KHz
  • DSP with 8 eq presets
  • Control panel with XLR input and link, volume, presets, HPfilter, ground-lift
  • 15 mm (5/8”) birch plywood enclosure, scratch resistant black paint finish
  • Eight M10 fly points, 35 mm (1.38’’) speaker stand socket and two FBT design aluminium handles
  • Ideal for live sound reinforcement applications as both front of house main PA, and as a stage monitor. Also suited for permanent installations
  • Very lightweight, only 20Kg



Specifications:

Code: 31759
Configuration: 2 way
Built-in amplifier LF/HF: 600/300 W RMS
Built-in amplifier peak LF/HF: 1200/600 W
Frequency response: 50Hz – 20Khz -6dB
Low Frequency woofer: 1×12 – 3coil neodymium inch
High Frequency driver: 1×1 – 1.7 coil inch
Maximum SPL cont/peak: 126/133 dB
Dispersion: 80°x50° HxV
Input impedance: 22 Kohm
Crossover Frequency: 1.5 KHz
AC Power requirements: 640 VA
Input connector: XLR with loop
Power cord: 5/16.4 m/ft
Net Dimension (WxHxD): 300x660x380 – 15x26x15 mm/inch
Net Weight: 20/45 Kg/lb
Transport Dimension (WxHxD): 485x495x750 – 19.1×19.5×29.5 mm/inch
Transport Weight: 22/48.5 Kg/lb

Click here to download FBT MITUS SERIES PDF
