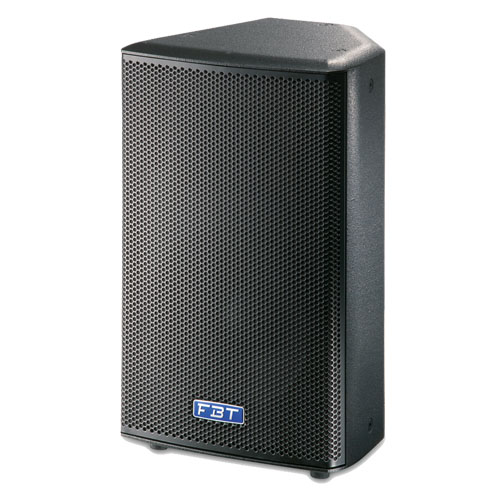

Mitus-112

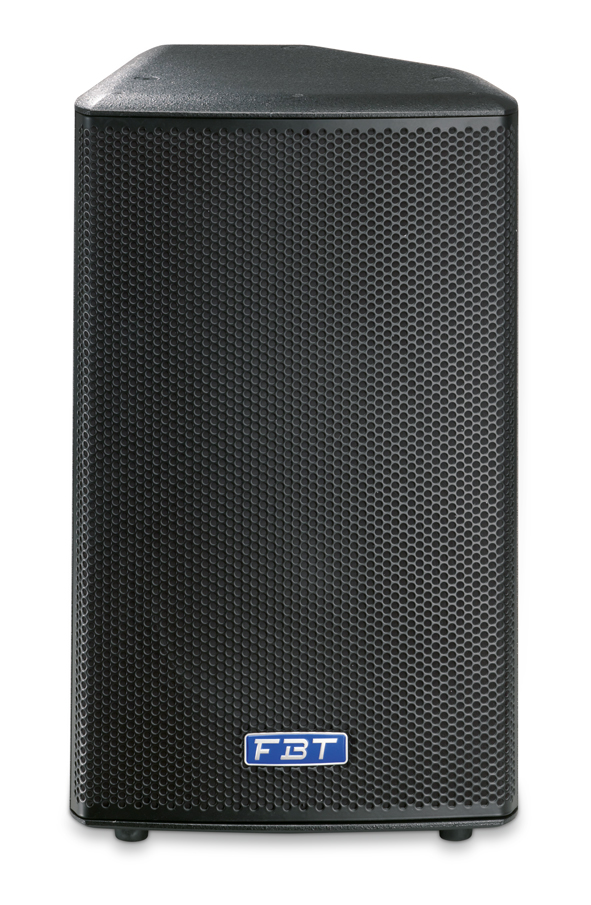

FB_Mitus112_fronte

Features:

  • 2-way bass-reflex design
  • Passive version, recommended amplifier of 700Wrms / 8ohm
  • Hi-grade passive internal crossover featuring “soft-trip” circuitry protection of LF and HF transducers
  • Speakon NL – 4MDV connectors IN & LINK OUT
  • 320 mm (12’’) B&C neodymium magnet woofer with 75 mm (3’’) voice coil
  • 25 mm (1’’) exit B&C neodymium magnet HF driver with 44 mm (1.7’’) voice coil with 80°H x 50°V rotatable horn
  • Frequency response from 55Hz to 18KHz
  • 15 mm (5/8”) birch plywood enclosure, scratch resistant black paint finish
  • Eight M10 fly points, 35 mm (1.38’’) speaker stand socket and two FBT design aluminium handles
  • Ideal for live sound reinforcement applications as both front of house main PA, and as a stage monitor. Also suited for permanent installations
  • Very lightweight, only 18Kg



Specifications:

Code: 31859
Configuration: 2 way
Recommended amplifier: 700 W RMS
Long Term power: 350 W
Short term power: 1200 W
Nominal impedance: 8 ohm
Frequency response: 55Hz- 18KHz -6dB
Low Frequency woofer: 1×12 – 3 coil neodymium inch
High frequency driver: 1 x 1 – 1.7coil inch
Sensitivity (@1W/1m): 99 dB
Maximum SPL cont/peak: 127/131 dB
Dispersion: 80°x50° HxV
Crossover Frequency: 1.6 KHz
Recommended HP filter: 40hz – 24dboct
Input connector: 2 x speakon NL4MD-V in & throu
Net Dimension (WxHxD): 380x660x280 – 15x26x15 mm/inch
Net Weight: 18/39.7 kg/lb
Transport Dimension (WxHxD): 485x495x750 – 19.1×19.5×29.5 mm/inch
Transport Weight: 20/44.1 kg/lb

Click here to download FBT MITUS SERIES PDF
