Features:

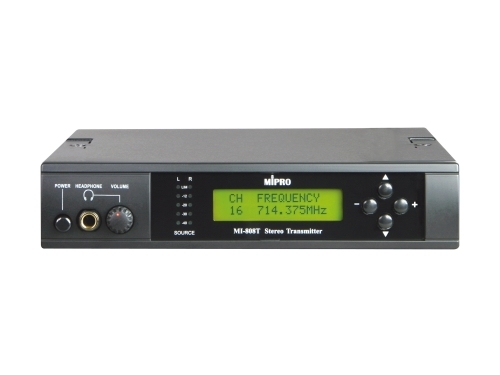

Consists of MI 808T, MI 808R and E 8S.

Adopts UHF-band PLL Synthesized design.

In 24MHz bandwidth, they are pre-programmed with 16 frequencies and can switch with a single button.

Dual-antenna diversity receiving eliminates signal dropouts and enhances receiving stability.

The dynamic expander circuit ensures S/N ration is greater than 90dB.

Stereo/ mono switchable audio output.

Numeric LED channel display with auto power saver.

With both POWER on/off and RF signal indicators.

Adopts two AA-size batteries and high-efficiency power saving circuitry to ensure long operating hours.

Rigid and durable magnesium alloy casing for professional request.

Equips with safe and unbreakable soft antennas.



Frequency Range UHF 620 – 874MHz
Bandwidth 24 MHz
Oscillation Mode PLL Synthesized
Channel Grid 25 kHz
T.H.D. <1% (at 1kHz, Max. deviation)
Frequency Response 80 Hz – 15 kHz
Modulation Type FM stereo modulation
Spurious Emissions <4 nW
RF Output Power Switchable Low <10 mW, High <100 mW (country dependent)

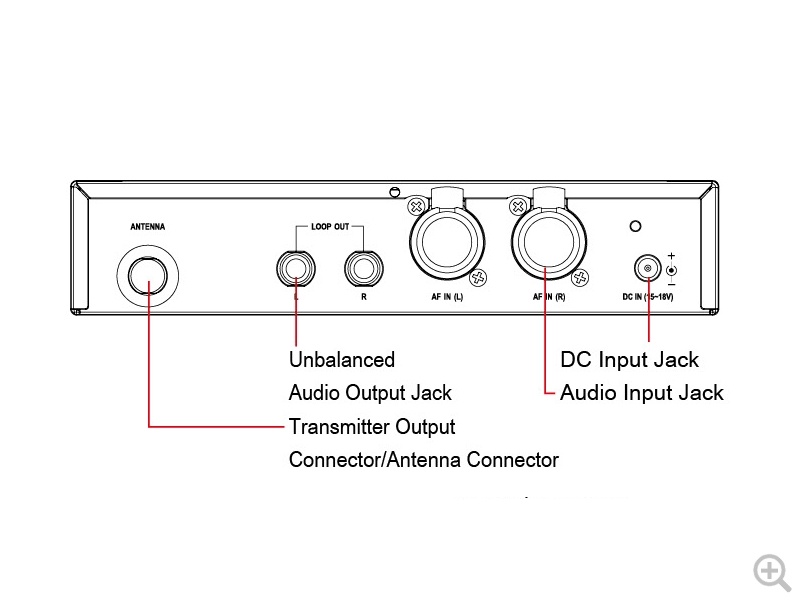

Audio Input Jack 2× Combination XLR & 6.3 mm (1/4″) TRS
Audio Output Jack 2× 6.3 mm (1/4″) TRS
Earphone Output Jack 6.3 mm (1/4″) stereo phone jack with volume control
Earphone Output Impedance ≧16 Ω
Antenna Connector TNC (50Ω impedance)
Power Supply 12 – 15 V DC
Dimensions (W × H × D) 210 × 44 × 206 mm / 8.3 ×1.7 × 8.1 “
Weight Approx. 1.1 kg / 2.4 lbs

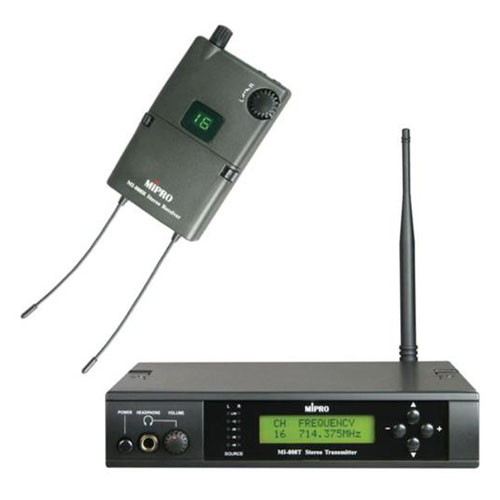

MI-808 is an IEM system designed for stage performance and broadcasting. Also, it can be served as a simultaneous language interpretation system. It is frequency-agile over a 24 MHz bandwidth with 16 selectable frequencies. Advanced dual-antenna true diversity technology eliminates signal dropouts and enhances signal stability. High S/N ratio and dynamic range ensures optimal audio quality.

Click here to download Mipro Wireless In-ear Monitor System MI-808R PDF
Click here to download Mipro Wireless In-ear Monitor System MI-808T PDF
Click here to download Mipro Wireless In-ear Monitor System E-8S
