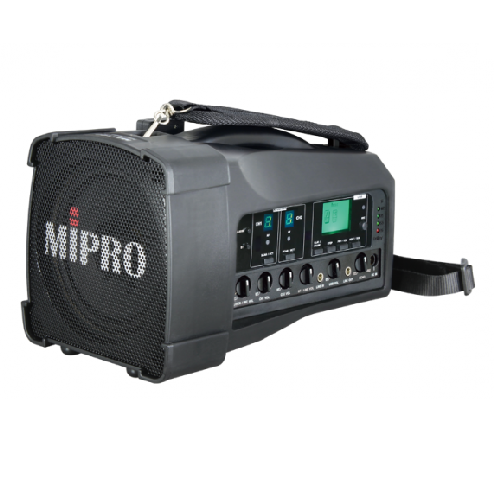

ma100d

Features:

  • Ultra light, ultra compact and perfect multi-function personal wireless PA system.
  • Built-in 2 wireless receivers with 16 preset channels.
  • User-friendly control panel with one-touch Scan & ACT sync button for simple channel set-up.
  • Built-in antenna prevents from breakage and increases reception range.
  • Accepts wired & wireless microphone. Optional USB music player & recorder with LCD screen.
  • Built-in alarm siren provides emergency warnings.
  • High efficiency class-D amplifier drives 5 ” full-range loudspeaker with level limiter.
  • 2 power modes: AC and lithium rechargeable battery.
  • Up to 12 hours of stand-by time per 4-hour full charge.
  • 4 LEDs array indicator for battery levels and charging status.
  • 3.5 mm line-input accepts external MP3, iPod or CD player.

Specifications:

Power Output 50W (Max)
Amplifier Class D
T.H.D. <1%
Frequency Response 50Hz~18KHz
Loudspeaker 5-inch full-range high efficiency
Audio Inputs Wired: 6.3mm (1/4″) optional MM-107 microphone
Line-In: 3.5mm (1/8″)
Audio Output 3.5mm (1/8″)
Installation Microphone stand, table mounted, shoulder belt.
Power Supply AC: External 100-240V AC switching power supply
DC & Battery: 14.8V/2.6AH rechargeable lithium battery
Charge Time Up to 4 hours (automatic charging management)
Stand-by Time MA-100d: Up to 12 hours
Battery Indicator 4-level
Color Black
Dimensions 135(W)×140(H)×240(D)mm / 5.3(W)x5.5(H)x9.4(D)”
Weight(battery included) MA-100d: Approx. 1.85kg / 4.0lbs



Wireless System

Receiver Channel MA-100d: Dual
Frequency Range UHF 620~934 MHz
Bandwidth 24 MHz
Preset Channels 16
Channel Set-up Scan & ACT sync
Transmitter ACT -30H Handheld, ACT -30T Bodypack
Antenna Built-in
Patents & Approvals Patented. Telecom and safety regulations approved.
Notes Refer to actual product in the event of product discrepancy.
Frequency range, max. deviation, RF output power and spurious emission to comply regulations of different countries.

Click here to download Mipro Portable Systems MA 100d PDF
