DMP 808

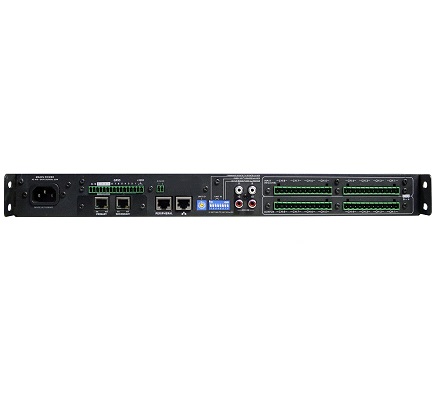

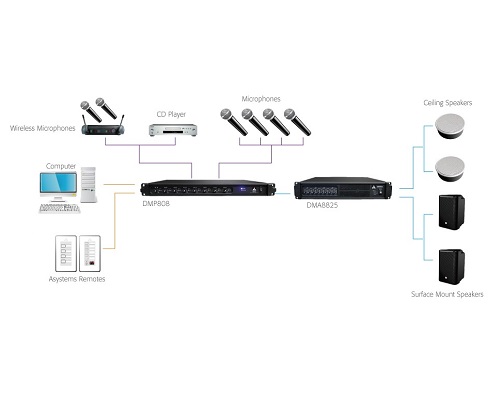

DMP 808 BACKDMP 808 APP

DMP 808  8×8 Digital Matrix Processor and Automatic Mixer

SO MUCH MORE THAN ‘JUST’ AN AUTOMIXER

Features:

  • 8-in x 8-out sophisticated matrix mixing makes routing easy
  • 8 microphone preamplifiers on euroblock connectors
  • 2 pairs of RCA inputs for consumer-grade audio products
  • 44.1 kHz or 48kHz sample rate
  • 24-bit A/D D/A conversion
  • +48V phantom power
  • Remote control via Asystems RM wall remotes
  • Password protected user accounts
  • Remote user control through Asystems Windows software
  • Signal generator (pink noise, sine wave, sweep waves)
  • DSP Processing:
    • Automatic Mixing
    • Compressor/Limiters
    • Feedback Silencers
    • 4-band EQs
    • Graphic Equalizers
    • 2- and 3-way Crossovers
    • Automatic level Control
    • Program Intuitive Ducker
  • DMP808D features the optional Dante networking card

Specifications:


DMP808
Input Connections 8 x Balanced Euroblock, 2 x Stereo RCA
Output Connections 8 x Balanced Euroblock
Front Panel Indicators 8 x Input/Peak, 8 x Output/Peak, 1 x Power, 1 x Network
Signal to Noise (20Hz-20KHz, unweighted) >110dB
Frequency Response 20Hz-20kHz, +/-1dB
Input Impedance 20K Ohm, balanced
Maximum Input Level 20dBu
Total Harmonic Distortion 0.002%
Processor 40-bit floating point
Input A/D Conversion 24-bit
Output D/A Conversion 24-bit
Sample Rates 44.1 kHz, 48 kHz
DIP Switches Network ID, 0 – F
Parametric Equalizers 4-band, adjustable Q, freq. and level
EQ filters All pass, band pass, hi/lo shelf
Compressor Threshold, range, attack, release
Feedback Silencer Fixed / Dynamic
Auto-mixing Input level, output level, priority, NOM attenuation max.
Phantom Power +48V DC
Power & Physical
Power Supply AC 100 – 240V switching power supply, 50/60Hz



Click here to download Asystems DMP_Series Automixer brochure

Click here to download Asystems DMP808 user manual
