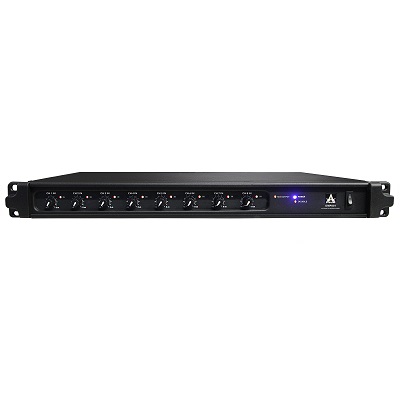

DMP 801

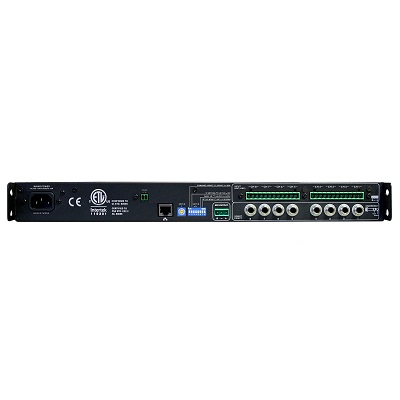

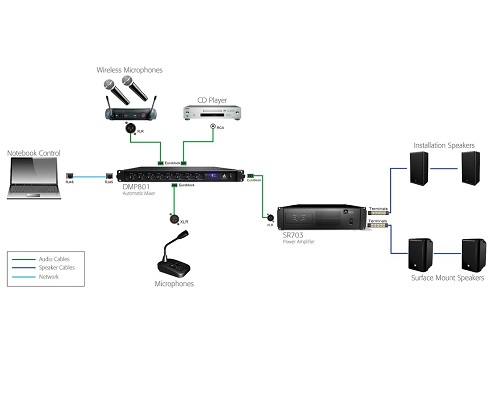

DMP 801 backDMP801 set up diagram

DMP 801  Auto Mixer

SO MUCH MORE THAN ‘JUST’ AN AUTOMIXER

Features:

• 8 microphone preamplifiers through Euroblock connectors
• 8 independent insert jacks for each input channel through ¼” TRS connectors
• Single balanced Euroblock output connector
• Sampling rate set at 48kHz
• 24-bit A/D D/A conversion
• +48V phantom power
• 24V DC connector for backup power
• Password protected user accounts
• Remote user control through Asystems Windows software
• DSP Processing:
o Automatic Mixing
o Compressor/Limiters
o Feedback Silencers
o 4-band EQs
o Graphic Equalizers
o Automatic level Control
o Program Intuitive Ducker
• Signal generator (pink noise, sine wave, sweep waves)



Specifications:


DMP 801
Input Connections Balanced Euroblock
Output Connections 1/4” TRS (insert / direct output)
Front Panel Indicators 8 x Input/Peak, 1 x Mix Output/Peak, 1 x Power, 1 x Network
Signal to Noise (20Hz-20KHz, unweighted) >110dB
Frequency Response 20Hz-20kHz, +/-1dB
Input Impedance 20K Ohm, balanced
Maximum Input Level 20dBu
Total Harmonic Distortion 0.002%
Processor 40-bit floating point
Input A/D Conversion 24-bit
Output D/A Conversion 24-bit
Sample Rates 44.1 kHz, 48 kHz
DIP Switches Network ID, 0 – F
Parametric Equalizers 4-band, adjustable Q, freq. and level
EQ filters All pass, band pass, hi/lo shelf
Compressor Threshold, range, attack, release
Feedback Silencer Fixed / Dynamic
Auto-mixing Input level, output level, priority, NOM attenuation max.
Phantom Power +48V DC
Power & Physical
Power Supply 120VAC/240VAC switching power supply, 15A Edison cable
External Power 2-pin euroblock, +24V DC
Dimensions 45 x 458.5 x 280.8 mm (1.77″ x 18.05″ x 11.06″)
