DIGILIVE 16

Digital Mixing Console

Overview:

• Digital audio mixer with complete desk settings & iPad control from iOS app
• 16 input with 16 internal busses
• 12 professional mic input channels
• 2 stereo inputs
• 8 configurable smart outputs
• 7″ high resolution touch screen
• 9 motorised 100mm faders
• Advanced hybrid user interface

Specifications:

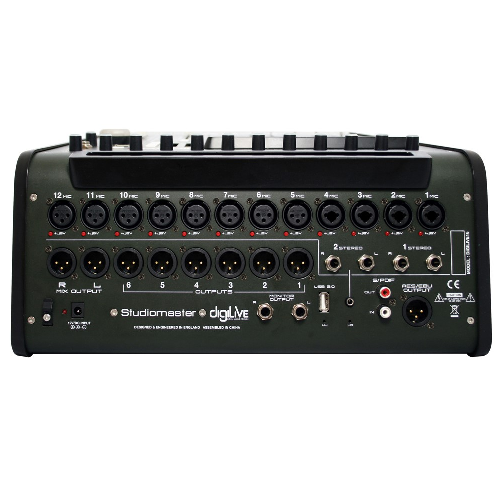

Mic Inputs: 12 (8x XLR / 4x Combo XLR)
Stereo Inputs: 2
Master Output: 2 (Left/Right balanced XLR)
Smart Outputs: 6 (assignable balanced XLR)
Internal busses: 16
Stage monitor: 1 TRS Jack output
Headphone: 1 TRS Jack output
Screen: 7″ high definition touch screen
Faders: 8x motorised 100mm channel faders + 1x motorised 100mm master L/R mix
Operation system: Android system
Network: Yes, via included WiFi module
Remote control: iPad iOS via ‘Digilive Blackbox’ app
Sample Frequency: 48 KHz
AD/DA: 192 KHz, 24-bit
DSP: 40 bit float point, SHARC processor
Effects: up to 8 assignable effect modules
AES/EBU: Output XLR
S/PDIF: Input / Output (RCA Phono)
USB Interface: 2 for playback/recording, scene/setting storage and system updates
Power Supply: 90-240V ~ 50/60Hz power supply 12VDC
Dimension W*H*D: 357 x 480 x 145 (mm)

Click here to download Digilive 16 QUICK-START-GUIDE

Click here to download DigiLiVE 16-USER-GUIDE

Click here to download Digilive 16 brochure
