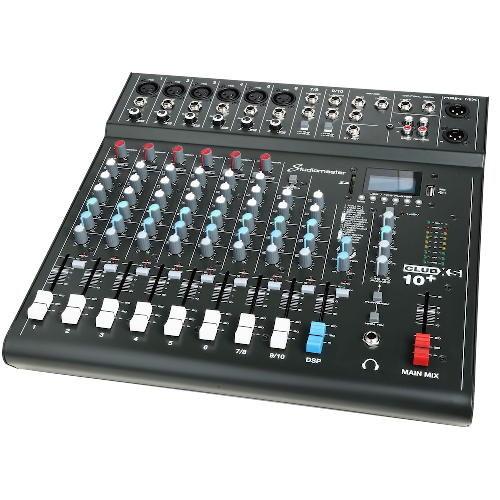

Club XS 10+ main

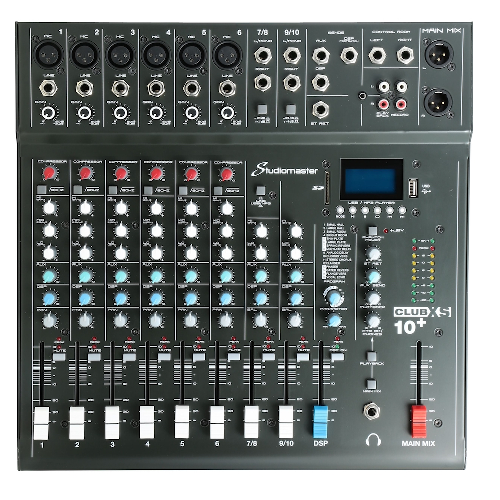

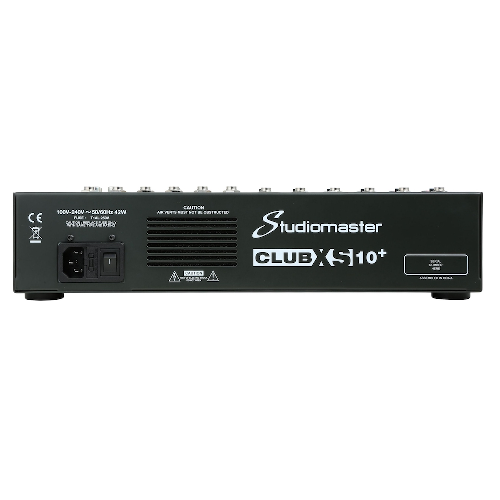

Club XS 10+ frontClub XS 10+ rear

CLUB XS 10+

Analogue Console

Club XS+ models incorporate all of the great features of the standard Club range, now with the inclusion of a DSP On/Off foot switch socket and an aesthetic overhaul, redesigned control knobs and finished in Studiomaster digital black.
Compact and portable, featuring 3 band EQ, built-in channel compression, DSP effects and a hugely versatile Bluetooth/MP3/USB/SD playback and recording media system.
Available in 6, 10 and 16 input models.

Overview:

  • 10 inputs
  • 6 mic channels
  • 2 stereo channels
  • 16 DSP effects
  • Bluetooth
  • USB/SD media player
  • Footswitch socket

Specifications:

Inputs: 10
Mic Inputs: 6
Stereo Inputs: 2
Mic Gain Range: 6dB to 50dB
Line Gain Range: 10dB to 34dB
EIN:  -100dB
Frequency Responce: 10Hz – 20kHz (+1/-3dB)
THD Mic Channel: <0.1%
Signal to Noise Ratio: 80dB
Output Levels: Max +26dB (Bal), +20dB (unBal)
EQ: Hi 12kHz, Mid 2.5kHz, Lo 45Hz, Lo cut 80Hz
USB/SD: MP3 Audio playback
Record: To USB drive or SD card (128kbps mono)
DSP Effects: 16 DSP effects
Power Requirements: 100V – 240V ~
Dimension W*H*D: 360 x 80 x 365 (mm)
Weight: 5kg



Click here to download Studiomaster ClubXS 10+ brochure

Click here to download CLUBXS-SERIES user manual
