Code: 39694
Both channel driven 8 ohm 1% THD Continous/impulsive: 230/250
Both channel driven 4 ohm 1% THD Continous/impulsive: 350/400
Bridge 8ohm 1% THD: 700/800
Input impedance: 20Kbalanced
Signal to noise ratio S/N: >100dB
Total harmonic dist. (1kHz-4ohm): < 0.03%
Frequency response: 20Hz-40kHz -6dB
Damping Factor: > 400
Class: AB
Maximum power consuption: 1000VA
Power supply voltage: 120 or 230 Vac 50/60Hz
Protections: Short circuit / thermal

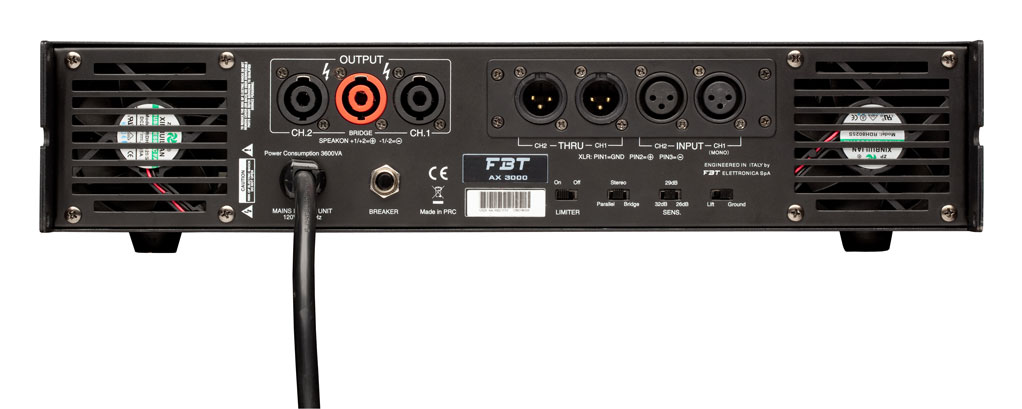

Connectors: IN: XLR/Jack – Out: Speakon/Binding post
Net Dimensions (WxHxD): 482x88x290 / 19×3.5×11.4

Click here to download FBT AX Series Amplifiers

Tour tough built, sleek design, impressive specs, excellent cost per watt performance, efficient under any application. With these credentials, FBT proudly presents the new AX series of power amplifiers, the perfect power mates for sound reinforcement speaker systems. The AX series consists in four 2HU rack mount models, from 800 to 3000 watts, all designed with sophisticated power amp circuits for improved quality, stability and reliability, all equipped with Stereo-Parallel-Bridge operation mode, dB sensitivity switch (26-29-32dB), limiter, ground lift, XLR/Jack inputs (plus extra RCA input on AX 800), Speakon/Binding posts outputs.
