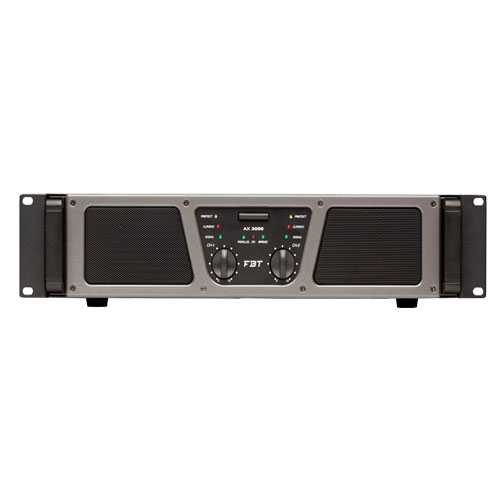

AX-2000
AX RETRO

Specifications:

Code: 39696
Both channel driven 8 ohm 1% THD Continous/impulsive: 630/650
Both channel driven 4 ohm 1% THD Continous/impulsive: 840/1000
Bridge 8ohm 1% THD: 1680/2000
Input impedance: 20K balanced
Signal to noise ratio S/N: >100dB
Total harmonic dist. (1kHz-4ohm): <0.03%
Frequency response: 20Hz-40kHz -6dB
Damping Factor: >400
Class: H – 2 step
Maximum power consuption: 2400va
Power supply voltage: 120 or 230 vac 50/60 Hz
Protections: Short circuit / thermal
Connectors: In: XLR/Jack out: Speakon/Binding post
Net Dimensions (WxHxD): 482x88x290 / 19x305x11.4

Click here to download FBT AX Series Amplifiers

Tour tough built, sleek design, impressive specs, excellent cost per watt performance, efficient under any application. With these credentials, FBT proudly presents the new AX series of power amplifiers, the perfect power mates for sound reinforcement speaker systems. The AX series consists in four 2HU rack mount models, from 800 to 3000 watts, all designed with sophisticated power amp circuits for improved quality, stability and reliability, all equipped with Stereo-Parallel-Bridge operation mode, dB sensitivity switch (26-29-32dB), limiter, ground lift, XLR/Jack inputs (plus extra RCA input on AX 800), Speakon/Binding posts outputs.
