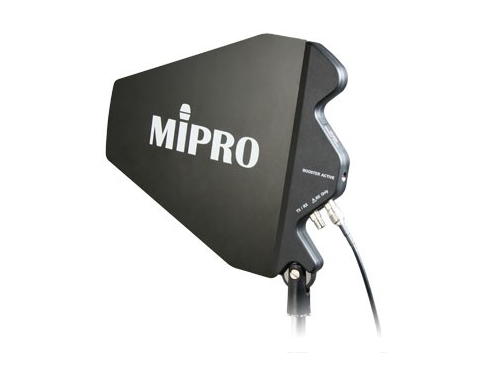

AT-90W

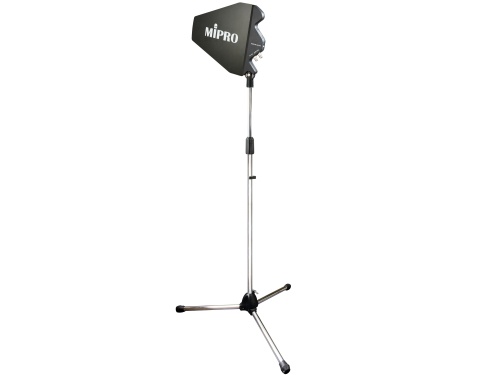

201212281147402R4h

Key Features:

  • Dual-way directional antenna for both
  • receiving and transmission.
  • Built-in 12dB high gain booster ensures ideal
  • long distance reception.
  • Ideal for directional receiving or transmission
  • indoor or outdoor applications with antenna’s
  • 6dB high gain booster.
  • Easy to set-up and use.

Specifications:

Frequency Range UHF 470MHz~1000MHz
Antenna Gain 4~6dBi
Booster Gain RX Connector: 12±1dB ; TX/RX Connector: 0dB
VSWR ≦2:1
3-dB Beam-width 75° Vertical, 130° Horizontal
Power Consumption RX Connector: 1120mW(8V DC; New Version: 8~15V DC)TX/RX Connector: 0mW
Impedance 50Ω
Connector TNC Female x2
Dimensions 319(W)x270(H)x25(D)mm / 12.6(W)x10.6(H)x1.0(D)”
Weight Approx. 430g / 15.2oz
Note Refer to actual product in the event of product discrepancy.
