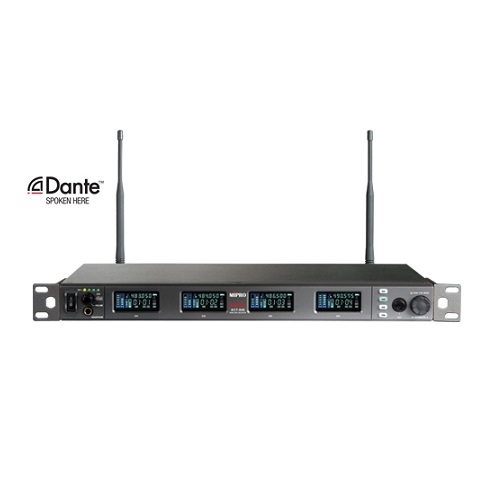

ACT 848

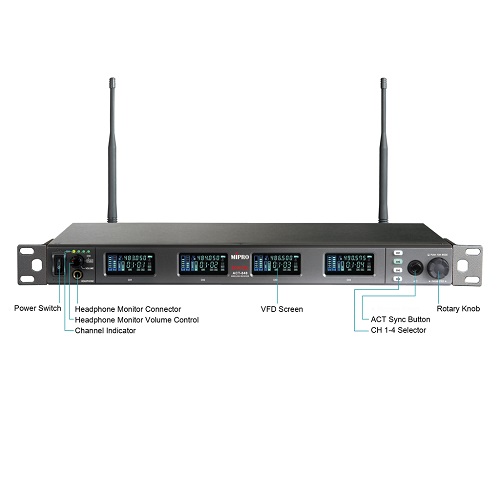

ACT 848 annotationsACT 848 rear annotationsACT 848 VFD

ACT 848Dante Interface Optional

Features:

  • The ACT-848 is an EIA standard 1U dual channel rack-mountable receiver with metal chassis.

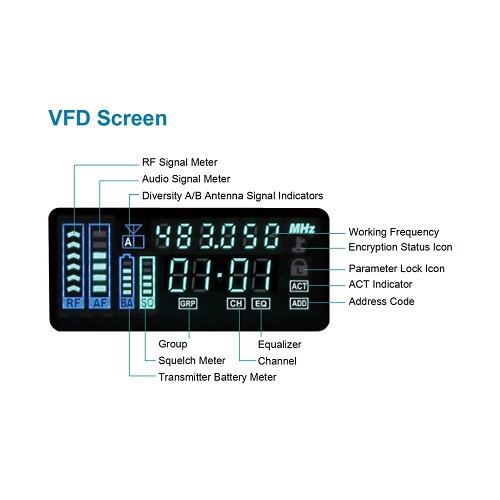

  • A full-color VFD (vacuum fluorescent display) provides clear viewing of all parameters. All controls are intuitive and easily accessible, allowing for quick and easy system setup via a single rotary control.
  • Enhanced RF circuitry improves anti-interference characteristics and system compatibility with 64 MHz wide bandwidth allows more interference-free channels to be selected
  • New digital diversity receiving technology eliminates signal dropout and enhances receiving range.
  • Full-Range sound quality won’t be changed by the strength of RF signals or operation distance.
  • Digitally-processed RF circuitry and DigitnamicPlus™ technology eliminates compander noise, assuring a wireless sound quality that easily rivals cable transmission.
  • Improved proprietary Audio A/D Converter provides a true dynamic range of 115 dBA, T.H.D. < 0.03% at 1 kHz with < 2.7 ms latency
  • AES3id Digital Audio Interface facilitates a direct connection to digital mixing consoles and transmits signal without distortion, ensuring a stable S/N ratio which will not deteriorate in long distance transmission.
  • Proprietary 256-bit encryption, provides secure audio transmission, preventing unauthorized listening.
  • 10 built-in SmartEQ™ presets and user-defined microphone capsule equalization allows faithful sound reproduction to suit artists’ preferences.
  • 10 built-in digital anti-feedback SmartEQ™ presets minimize feedback effectively without sacrificing sound quality.
  • Optional Standard AA battery transmitters or rechargeable lithium battery transmitters.

Specifications:

Channel  Quad
Frequency Range UHF 480 ~ 960 MHz (country dependent)
Bandwidth 64 MHz
Sensitivity 12 dBμV at S/N ≒ 118 dBA (digital output)
Spurious Rejection > 85 dB
Audio Sampling 24-bit / 44.1 kHz Rate
Frequency Response 20 Hz ~ 20 kHz
Dynamic Range > 115 dB (A)
Latency 2.7 ms
Audio Interface AES digital output, analog transmission
Monitor Output Headphone monitor connector
Dante Interface Optional
Power Supply External adaptor
Dimensions 420 (W) × 44 (H) × 245 (D) mm / 17 × 1.7 × 9.6 “
Net Weight Approx. 2.6 kg / 5.7 lbs
Antenna Detachable. 50Ω TNC female connector provides bias for the MIPRO antenna systems.
Note Refer to actual product in the event of product discrepancy.
Frequency range and maximum deviation comply with the regulations of different countries.
