act-80tc

Features:

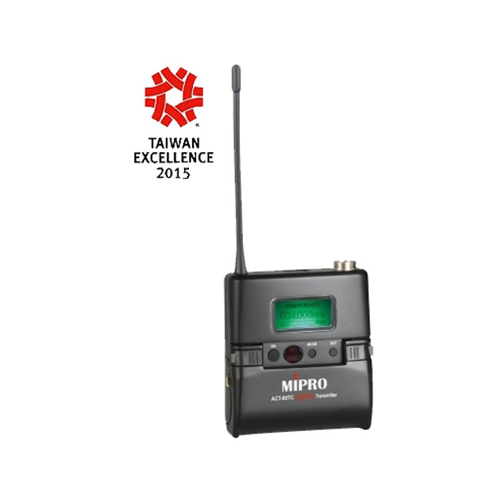

  • Ultra slim bodypack transmitter with sturdy magnesium alloy housing.
  • On the top features mute switch, mini-XLR connector and antenna.
  • Backlit LCD displays all operational parameter information.
  • Innovatively designed battery cover allows easy access to operate buttons and prevents accidental operation.
  • Mute button with remote-control jack for easy activation of mute function.
  • Stable PLL circuit. Automatically synchronized with the receiver’s frequency by MIPRO’s patented ACT™ function.
  • Selection of polarization for audio input to match capsules of different polarizations.
  • Six selectable gain settings.
  • Mini-XLR input with secure screw lock connector for lavaliere / headworn mics and guitar.
  • Adjustable belt clip allows wearing transmitter in up or down position.
  • Transmitter has high-efficiency circuitry design. The included single rechargeable lithium battery can be easily removed or interchanged for charging. The intelligent battery charger maintains a high charge capacity for up to 600 charge cycles for cost saving and is environmentally friendly.



Specifications:

Frequency Range UHF 480 – 960 MHz (country dependent)
Bandwidth 64 MHz
Channel Set-Up ACT Sync
RF Output Power 10 mW / 50 mW (switchable)
Spurious Emission ≦ -60 dBc
Oscillation Mode PLL Synthesized
Frequency Stability ≦ ±0.005% (-10 – +60℃)
Modulation Type New digital modulation
Audio Compression 2nd generation DSP Inertial coding
LCD Display Group, Channel, Frequency, AF gain, Low-cut, Limiter, Encryption status, RF power, Phase, Lock status, Mute mode, Battery status & Error codes
Gain Setting +18 dB, +12 dB, +6 dB, 0 dB, -6 dB, -12dB (6 settings). 0 dB = microphone sensitivity
Mute Connector Optional MJ-70 remote mute switch
Battery Type 1 ICR 18500 rechargeable lithium battery
Operating Time Min. 13 hours
Current Consumption High Power: approx. 125 mA; Low Power: approx. 100 mA
Dimensions (W × H × D) 63 × 70 × 25 mm / 2.5 × 2.7 × 1.0 “
Weight Approx. 85 g / 3 oz, excluding batteries
