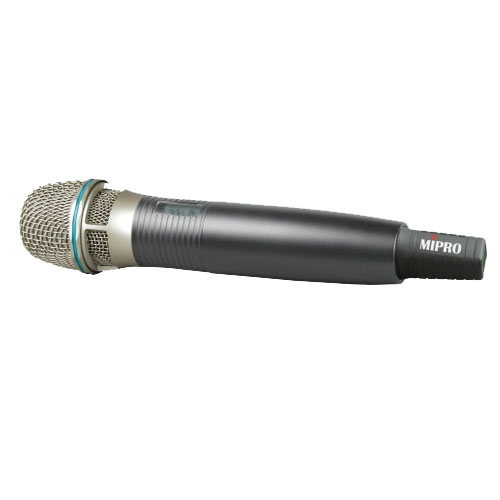

ACT-7H

Features:

  • Rugged, ergonomically designed magnesium alloy housing.
  • Standard cardioid condenser microphone capsule provides high fidelity, wide frequency response, high dynamic range, rapid transient response, clarity and accurate sound reproduction.
  • ACT™ syncs the transmitter and receiver frequency automatically.
  • Extremely low handling noise.
  • Hardened steel grille resists wear and abuse.
  • Built-in foam reduces pop, breath and wind noise.
  • Pilotone squelch for interference-free operation.
  • Silent on/off switch.
  • 4-segment battery status meter.
  • LCD displays group, channel & error message code.
  • 20-hour battery life per 2 ‘AA’ alkaline batteries.
  • 100m(330ft.) operating range.
  • 100% made in Taiwan.



Specifications:

Oscillation Mode PLL Synthesized
Frequency Range UHF 480~934MHz
Bandwidth 24MHz
Channel Set-Up ACT Sync
RF Output Power 10~30mW (country dependent)
Spurious Emissions <-55dBc
Max. Input Level 140dB SPL
Battery 2 AA alkaline
Dimensions 50(Ø)×262(L)mm / 2.0(Ø)x10.3(L)
Weight Approx. 260g / 9.2oz (excluding batteries)
Patents & Approvals Patented. Telecom and safety regulations approved.
Note Refer to actual product in the event of product discrepancy.
Frequency range and maximum deviation comply with the regulations of different countries.
