ACT-2412A Detachable Antenna Dual-Channel Digital Receiver
Features:
- Stable digital FSK modulation circuitry. All frequencies are located in this band.
- Employ Frequency Hopping Spread Spectrum technology, and each channel presets 4 hopping frequencies that skip the Wi-Fi frequency in use.
- The adaptive tracking algorithm helps effectively avoid interference from 2.4GHz communication products.
- With dual tuner true diversity receiving, the receiving distance is up to 100 meters (330 ft.) with no signal drop-out.
- The precisely designed PCB is enclosed in a sturdy case.
- Graphic OLED screen.
- The included battery of the rechargeable handheld and bodypack transmitters can be easily removed or interchanged for charging.
- An affordable price for entry-level consumers and the music instrument market.
Specifications:
| Channel | Dual | ||||||||
| Chassis | EIA Standard 19 ” 1U metal black chassis | ||||||||

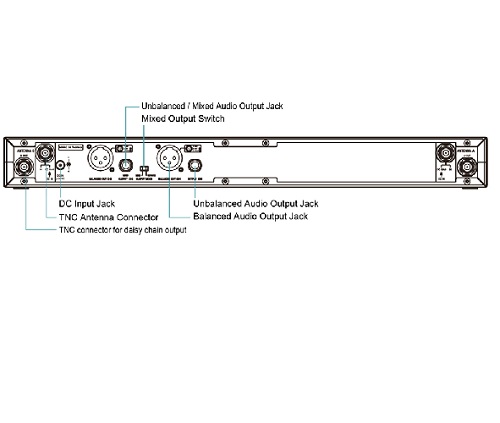

| Antenna | Rear panel, detachable | ||||||||
| Frequency Band | 2.4 GHz – ISM band | ||||||||
| Bandwidth | 83 MHz | ||||||||
| Preset Frequency | 12 | ||||||||
| Display | Graphic OLED | ||||||||
| Transmission Method | FHSS frequency-hopping technique. Each channel has 4 preset hopping frequencies. | ||||||||
| Receiving Mode | Dual-tuner true diversity receiving | ||||||||
| Audio Sampling | 24-bit / 44.1 kHz Rate | ||||||||
| Output Connectors | Balanced XLR & Unbalanced 6.3 mm (1/4 “) 0 dB (standard), -10 ~ +20 dB adjustable range |
||||||||
| Latency | < 4.0 ms | ||||||||
| Channel Set-up | ACT Sync | ||||||||
| Power Supply | External | ||||||||
| Dimensions (W × H × D) | 420 × 44 × 180 mm / 16.5 × 1.7 × 7.1 “ | ||||||||
| Weight | 1.4 kg / 3.1 lbs | ||||||||
Click here to download Mipro ACT 2412A brochure
